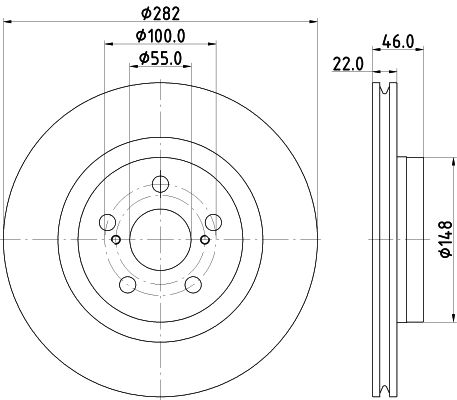

| Brake Disc Type: | internally vented |
| Outer Diameter [mm]: | 282 |
| Brake Disc Thickness [mm]: | 22 |
| Height [mm]: | 46 |
| Minimum thickness [mm]: | 19 |
| Surface: | Coated |
| Inner Diameter [mm]: | 138 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 55 |
| Hole Arrangement/Number: | 05/07 |
| Wheel Bolt Bore Ø [mm]: | 14.6 |
| Supplementary Article/Info 2: | without wheel hub |
| Supplementary Article/Info 2: | without wheel bearing |
| Supplementary Article/Info 2: | without wheel studs |
| Weight [kg]: | 6 |
| MAZDA: | 1M0426251 |
| TOYOTA: | 43512K0040 |
| A.B.S.: | 18928 |
| A.Z. Meisterteile: | AZMT-44-024-2557 |
| ASHIKA: | 60-02-2056C |
| ATE: | 24.0122-0322.1 |
| BENDIX Braking: | BDS2270 |
| BLUE PRINT: | ADBP430168 |
| DON: | PCD22182 |
| EUROBRAKE: | 58153145191 |
| FEBI BILSTEIN: | 184696 |
| HERTH+BUSS JAKOPARTS: | J3302212 |
| JAPANPARTS: | DI-2056C |
| JAPANPARTS: | DI2056JM |
| JAPKO: | 602056C |
| KAVO PARTS: | BR-10062-C |
| MAXGEAR: | 19-4830 |
| MINTEX: | MDC3024C |
| NIPPARTS: | N3302161 |
| NK: | 3145191 |
| NPS: | T330A196 |
| OPTIMAL: | BS-1076C |
| PAGID: | 56335 |
| PAGID: | 56335NC |
| PEMEBLA: | BNXBDS2270 |
| SWAG: | 33 11 1166 |
| TEXTAR: | 92333503 |
| TRW: | DF4641 |
| ZIMMERMANN: | 590.2850.20 |
