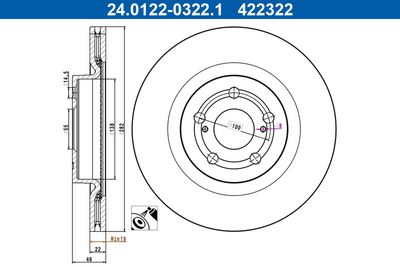

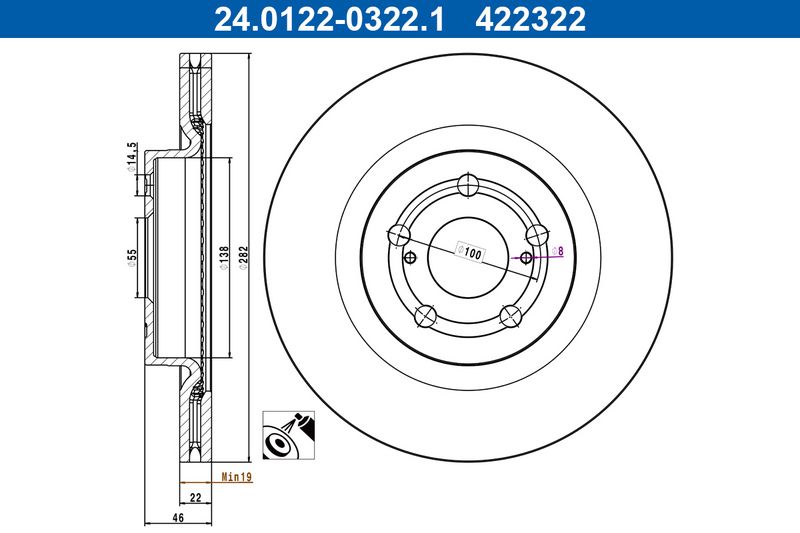

| Outer Diameter [mm]: | 282 |
| Brake Disc Thickness [mm]: | 22 |
| Minimum thickness [mm]: | 19 |
| Brake Disc Type: | Vented |
| Surface: | Coated |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Height [mm]: | 46 |
| Centering Diameter [mm]: | 55 |
| Inner Diameter [mm]: | 138 |
| Bore Ø [mm]: | 14.5 |
| Test Mark: | E1 90R-02C0115/1323 |
| MAPP code available: |
| TOYOTA: | 43512-K0040 |
| A.B.S.: | 18928 |
| A.Z. Meisterteile: | AZMT-44-024-2557 |
| BENDIX Braking: | BDS2270 |
| BORG & BECK: | BBD5650 |
| DON: | PCD22182 |
| HELLA: | 8DD 355 134-381 |
| HELLA PAGID: | 8DD 355 134-381 |
| HERTH+BUSS JAKOPARTS: | J3302212 |
| KAVO PARTS: | BR-10062-C |
| MINTEX: | MDC3024C |
| PAGID: | 56335 |
| PAGID: | 56335NC |
| TEXTAR: | 92333503 |
| TRW: | DF4641 |
