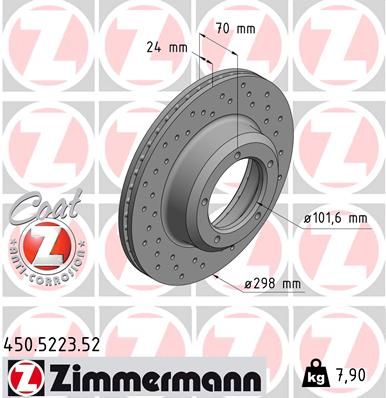

ZIMMERMANN 450.5223.52 Brake Disc
EAN: 4250238780045
99.04 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Brake Disc Type: | internally vented |
| Brake Disc Type: | Perforated |
| Machining: | High-carbon |
| Surface: | Coated |
| Outer Diameter [mm]: | 298 |
| Brake Disc Thickness [mm]: | 24 |
| Height [mm]: | 70 |
| Rim Hole Number: | 5 |
| Bolt Hole Circle Ø [mm]: | 127 |
| Centering Diameter [mm]: | 102 |
| Test Mark: | ECE R90 APPROVED |
| Minimum thickness [mm]: | 22 |
| Weight [kg]: | 7.9 |
| Hole Arrangement/Number: | 5/5 |
Similar Spare Parts
| A.B.S.: | 16135 |
| BLUE PRINT: | ADJ134324 |
| BREMBO: | 09.5488.10 |
| BREMBO: | 09.5488.11 |
| FEBI BILSTEIN: | 106297 |
| FERODO: | DDF262 |
| HELLA: | 8DD 355 103-161 |
| HELLA PAGID: | 8DD 355 103-161 |
| JAPANPARTS: | DI-L09C |
| JAPANPARTS: | DIL09JM |
| JAPKO: | 60L09C |
| JURID: | 561629JC |
| MAGNETI MARELLI: | 360406014400 |
| MAGNETI MARELLI: | 361302040740 |
| MEYLE: | 45-15 521 0004/PD |
| SWAG: | 33 10 2524 |
| TEXTAR: | 92061300 |
| VAICO: | V48-80002 |
| ZIMMERMANN: | 450.5223.20 |
Compatibility
