| Brake Disc Type: | internally vented |
| Surface: | Coated |

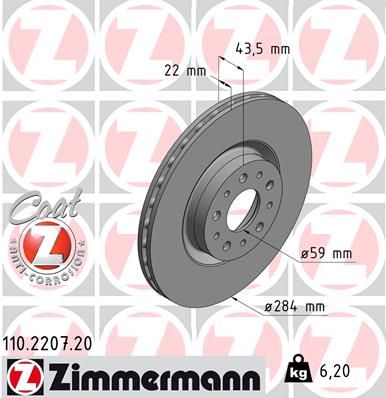

| Outer Diameter [mm]: | 284 |
| Brake Disc Thickness [mm]: | 22 |
| Height [mm]: | 44 |
| Rim Hole Number: | 5 |
| Bolt Hole Circle Ø [mm]: | 98 |
| Centering Diameter [mm]: | 59 |
| Test Mark: | ECE R90 APPROVED |
| Minimum thickness [mm]: | 20.2 |
| Weight [kg]: | 5.9 |
| Hole Arrangement/Number: | 10/5 |
| ALFA ROMEO: | 164.10.220.23.00 |
| ALFA ROMEO: | 605 71 548 |
| ALFA ROMEO: | 608 01 722 |
| ALFA ROMEO: | 605 51 775 |
| ALFA ROMEO: | 605 69 163 |
| ALFA ROMEO: | 606 22 077 |
| ALFA ROMEO: | 606 53 478 |
| ALFA ROMEO: | 606 58 565 |
| ALFA ROMEO: | 717 11 434 |
| ALFA ROMEO: | 717 11 447 |
| ALFA ROMEO: | 824 27 592 |
| ALFA ROMEO: | 824 50 539 |
| ALFA ROMEO: | 717 39 567 |
| ALFA ROMEO: | 717 72 267 |
| ALFA ROMEO: | 824 10 539 |
| FIAT: | 464 45 006 |
| FIAT: | 519 90 127 |
| FIAT: | 519 96 238 |
| FIAT: | 605 69 386 |
| FIAT: | 717 39 568 |
| FIAT: | 520 63 171 |
| OPEL: | 5 69 086 |
| OPEL: | 5 69 095 |
| GENERAL MOTORS: | 95511282 |
| GENERAL MOTORS: | 95515331 |
| 0AMS: | RIF-033 |
| 4U Autoparts: | 52144FT |
| 4X4 ESTANFI: | EST-60-00-0206 |
| 4X4 ESTANFI: | EST-60-00-0206C |
| 7 SEVEN PARTS: | SV03D0009 |
| A.B.S.: | 15953 |
| A.Z. Meisterteile: | AZMT-44-024-1282 |
| ABTEX: | BD315V |
| ALLIED NIPPON: | AND6236 |
| ALTE AUTOMOTIVE: | 128004FCAL |
| ANDEL: | AND0248 |
| AP: | 24243 E |
| AP: | 24243 V |
| AP: | 24243 X |
| AP: | 24871 E |
| AP: | 25642 V |
| AP: | X 24243 |
| AP XENERGY: | X602002 |
| APEC: | DSK788 |
| APEC: | SDK6172 |
| APlus: | 62144AP |
| ASAM AUTOMOTIVE: | 74973 |
| ASHIKA: | 60-00-0206C |
| ASHUKI by Palidium: | P330-088 |
| AYD OE - Excellence: | 10-51033 |
| BENDIX Braking: | BDS1096 |
| BLUE PRINT: | ADL144307 |
| BLUE PRINT: | ADL144321 |
| BORG & BECK: | BBD4907 |
| BORG & BECK: | BBD5492 |
| BORG & BECK: | BBD5554 |
| BOSCH: | 0 986 478 521 |
| BRECO: | BS 7975 |
| BRECO: | BS 8537 |
| BRECO: | BV 7975 |
| BRECO: | BV 9252 |
| BREMBO: | 09.4939.21 |
| BREMBO: | 09.4939.24 |
| BREMBO: | 09.4939.2X |
| BREMBO: | 09.4939.76 |
| BREMBO: | 09.9624.24 |
| BREMBO: | 09.C645.21 |
| BREMBO: | 59.E114.12 |
| BREMSI: | CD6156V |
| BSG: | BSG 25-210-004 |
| Brake ENGINEERING: | DI952930 |
| Burig: | B010096 |
| CAR: | 142.1633 |
| CAR: | 142.187 |
| CAR: | HPD 1633 |
| CAR: | HPD 187 |
| CASALS: | 55569 |
| CHAMPION: | 561520CH |
| CIFAM: | 800-183C |
| COMLINE: | ADC1805V |
| DACO Germany: | 609922 |
| DENCKERMANN: | B130467 |
| DIAMAX: | N08283P |
| DON: | PCD10992 |
| Dr!ve+: | DP1010.11.0843 |
| EUROBRAKE: | 5815209925 |
| EUROBRAKE: | 5815312372 |
| EUROBRAKE: | 5815319925 |
| FAST: | FT31020 |
| FEBI BILSTEIN: | 14075 |
| FERODO: | DDF156 |
| FERODO: | DDF156C |
| FERRON: | TOP00820065 |
| FI.BA: | FBD366 |
| FREMAX: | BD-1548 |
| FTE: | 9072038 |
| FTE: | BS3503 |
| Fahren: | FBD6172 |
| GH: | GH-401056 |
| GIRLING: | 6017491 |
| GUTTMANN: | BD1225 |
| HELLA: | 8DD 355 124-211 |
| HELLA: | 8DD 355 101-951 |
| HELLA PAGID: | 8DD 355 101-951 |
| HELLA PAGID: | 8DD 355 124-211 |
| JAPANPARTS: | DI-0206C |
| JAPANPARTS: | DI0206JM |
| JAPKO: | 600206C |
| JPN: | 30H9074-JPN |
| JPN: | 30H9172-JPN |
| JURATEK: | ALF102 |
| JURID: | 561520JC |
| JURID: | 561520JC-1 |
| KEY PARTS: | KBD4907 |
| KRAFT AUTOMOTIVE: | 6046840 |
| LPR: | A2171VR |
| LYNXAUTO: | BN-1433 |
| MAGNETI MARELLI: | 360406000300 |
| MAGNETI MARELLI: | 360406000301 |
| MAGNETI MARELLI: | 360406000302 |
| MAGNETI MARELLI: | 360406000305 |
| MAGNETI MARELLI: | 360704027900 |
| MAGNETI MARELLI: | 361302040258 |
| MAGNETI MARELLI: | 361302040813 |
| MAGNETI MARELLI: | 361302040698 |
| MAGNETI MARELLI: | 360406181701 |
| MAGNETI MARELLI: | 361302040830 |
| MAGNETI MARELLI: | 360406211500 |
| MASTER-SPORT GERMANY: | 202201450 |
| MASTER-SPORT GERMANY: | 202201631 |
| MASTER-SPORT GERMANY: | 202221450 |
| MASTER-SPORT GERMANY: | 24012201451-PCS-MS |
| MASTER-SPORT GERMANY: | 24012201451-SET-MS |
| MASTER-SPORT GERMANY: | 24012201451PR-PCS-MS |
| MASTER-SPORT GERMANY: | 24012201451SE-SET-MS |
| MASTER-SPORT GERMANY: | 202221450P |
| MASTER-SPORT GERMANY: | 24012201451-SET-MSP |
| MASTER-SPORT GERMANY: | 24012201451PR-PCS-MSP |
| MASTER-SPORT GERMANY: | 202201631P |
| MASTER-SPORT GERMANY: | 24012201451SE-SET-MSP |
| MASTER-SPORT GERMANY: | 202201450P |
| MASTER-SPORT GERMANY: | 24012201451-PCS-MSP |
| MAXGEAR: | 19-0995 |
| MAXGEAR: | 19-0995MAX |
| MAXGEAR: | 19-0995SPORT |
| MAXTECH: | 877219 |
| METELLI: | 23-0183C |
| METZGER: | 6110084 |
| MEYLE: | 215 521 0006 |
| MILES: | K001930 |
| MINTEX: | MDC385 |
| MINTEX: | MVK0008 |
| MINTEX: | MVK0010 |
| MOTAQUIP: | LVBD564Z |
| NAPA: | PBD8376 |
| NAPA: | NBD5365 |
| NECTO: | WN428 |
| NK: | 209925 |
| NK: | 312372 |
| NK: | 319925 |
| National: | NBD337 |
| OPEN PARTS: | BDA1015.20 |
| OPEN PARTS: | BDR1015.20 |
| OPTIMAL: | BS-3160C |
| Omnicraft: | 2134118 |
| Omnicraft: | 2134419 |
| PAGID: | 51809 |
| PAGID: | 51809NC |
| PEMEBLA: | BNXBDS1096 |
| PEMEBLA: | JAPDI-0206C |
| PEMEBLA: | JAPDI-0206 |
| PROFIT: | 5010-0156 |
| ProfiPower: | 3B1072 |
| QUARO: | QD4594 |
| QUARO: | QD4594HC |
| RAICAM: | RD01540 |
| RAP BRAKES: | R-D0837 |
| RED-LINE: | 26FT003 |
| RED-LINE: | 26FT009 |
| RIDEX: | 82B0132 |
| ROTINGER: | RT 2937 |
| ROTINGER: | RT 2937-GL |
| ROTINGER: | RT 2937-GL T3 |
| ROTINGER: | RT 2937-GL T5 |
| ROTINGER: | RT 2937-GL T6 |
| ROTINGER: | RT 2937-GL T9 |
| ROTINGER: | RT 2937HP |
| ROTINGER: | RT 2937HP-GL |
| ROTINGER: | RT 2937HP-GL T3 |
| ROTINGER: | RT 2937HP-GL T5 |
| ROTINGER: | RT 2937HP-GL T6 |
| ROTINGER: | RT 2937HP-GL T9 |
| SAMKO: | A2171VR |
| SIGMAUTO: | DBA156V |
| SKF: | VKBD 80150 V2 |
| SRLine: | S71-0240 |
| STARLINE: | PB 2937C |
| STELLOX: | 6020-9925V-SX |
| SWAG: | 74 91 4075 |
| Stark: | SKBD-0020135 |
| TEXTAR: | 89015000 |
| TEXTAR: | 92046800 |
| TEXTAR: | 92046803 |
| TOMEX Brakes: | TX 71-39 |
| TRUSTING: | DF670 |
| TRW: | DF1749 |
| VAICO: | V24-80009 |
| VALEO: | 186265 |
| VALEO: | 886265 |
| VALEO: | 672942 |
| VILLAR: | 628.1732 |
| VILLAR: | 628.2956 |
| VILLAR: | 628.6924 |
| ZEKKERT: | BS-5014 |
| ZIMMERMANN: | 110.2207.52 |
The ZIMMERMANN Brake Disc (110.2207.20) is available now at Spareza, with expert support for both OEM and aftermarket applications. If you're unsure whether this part fits your vehicle, our specialists can verify compatibility against your exact model — just share your VIN or registration and we'll confirm it before you order.
Want to be certain about the specs? We can cross-check the 110.2207.20 against OE and aftermarket reference numbers and confirm the key parameters of this Brake Disc — dimensions, connection types and the technical details that matter for a correct replacement. We work only with verified brands and keep detailed databases, so you are not left guessing.
If the ZIMMERMANN Brake Disc is out of stock or you'd like options, we can suggest equivalent parts from trusted manufacturers, balancing price against quality. For workshops, service centres and distributors we also handle bulk and wholesale enquiries, with stock visibility across multiple warehouses and worldwide shipping.
How do I know if the ZIMMERMANN Brake Disc fits my vehicle?
Share your VIN or registration and our team will check the 110.2207.20 against your exact
model, comparing OE and cross-reference numbers to confirm fitment before you buy.
Is the Brake Disc an OEM or aftermarket part?
The listing shows the brand and manufacturer number (110.2207.20) so you see exactly what
you are getting. We supply both genuine OEM and quality aftermarket parts and can suggest
equivalents if you'd prefer an alternative.
What if the ZIMMERMANN Brake Disc is out of stock?
We can recommend equivalent parts from trusted manufacturers and give you delivery
estimates for in-stock alternatives across our warehouses.
Do you offer wholesale or bulk pricing?
Yes. For workshops, service centres and distributors we offer bulk pricing,
multi-warehouse stock and worldwide shipping. Send us the 110.2207.20 and the quantity you
need for a quote.
How long will delivery take?
Delivery depends on your region and current stock. Tell us your location and we'll confirm
availability and an estimated dispatch time for the Brake Disc before you order.
How can I be sure the part is genuine?
We work only with verified suppliers and authorised brands. Every ZIMMERMANN part is
sourced through trusted channels, and we can provide reference details on request.
