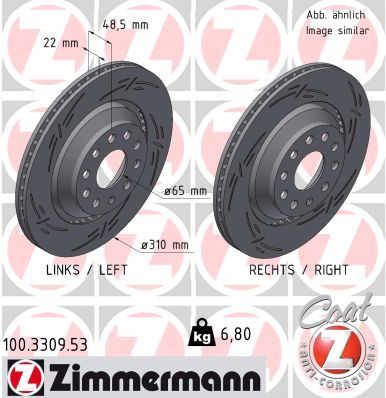

ZIMMERMANN 100.3309.53 Brake Disc
EAN: 4250238788508
130.64 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Brake Disc Type: | Externally Vented |
| Brake Disc Type: | slotted |
| Machining: | High-carbon |
| Surface: | Coated |
| Outer Diameter [mm]: | 310 |
| Brake Disc Thickness [mm]: | 22 |
| Height [mm]: | 49 |
| Rim Hole Number: | 5 |
| Bolt Hole Circle Ø [mm]: | 112 |
| Centering Diameter [mm]: | 65 |
| directional: | |
| Test Mark: | ECE R90APPROVED |
| Minimum thickness [mm]: | 20 |
| Weight [kg]: | 6.8 |
| Hole Arrangement/Number: | 10/5 |
OEN Number
| VAG: | 5Q0 615 601 S |
| VAG: | 3QF 615 601 A |
| VAG: | 1K0 615 601 N |
| VAG: | 5Q0 615 601 E |
| VAG: | 5QM 615 601 A |
| VW (SVW): | 3QD 615 601 A |
Similar Spare Parts
| A.B.S.: | 17729 |
| BLUE PRINT: | ADV184310 |
| BREMBO: | 09.A200.10 |
| BREMBO: | 09.A200.11 |
| BREMBO: | 09.A200.1S |
| BREMBO: | 09.A200.1X |
| BREMBO: | 09.A200.75 |
| CIFAM: | 800-889C |
| FEBI BILSTEIN: | 24386 |
| FTE: | 9082773 |
| HELLA: | 8DD 355 112-121 |
| HELLA: | 8DD 355 128-451 |
| HERTH+BUSS JAKOPARTS: | J3310844 |
| METELLI: | 23-0889C |
| STELLOX: | 6021-0041V-SX |
| SWAG: | 30 92 4386 |
| TEXTAR: | 92140700 |
| TEXTAR: | 92140703 |
| TOPRAN: | 110 418 |
| ZIMMERMANN: | 100.3309.20 |
| ZIMMERMANN: | 100.3309.52 |
