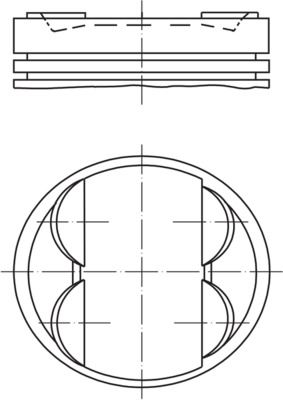

MAHLE 503 PI 00100 000 Piston

EAN: 4009026959671

225.79 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Cylinder Bore [mm]:	99
Length [mm]:	52.4
Compression Height [mm]:	32.95
Bolt length [mm]:	58
Bolt Ø [mm]:	22
Recess Depth 1 [mm]:	2.7
Recess Diameter [mm]:	71.76
Valve pocket depth 1 [mm]:	5.97
Valve pocket depth 2 [mm]:	5.97
Top land height [mm]:	8
Production Number:	99 P 5
Piston Clearance [mm]:	0.06
Component Number:	1. R 1.2 N
Component Number:	2. NM 1.5
Component Number:	3. 3S 2 N
Packaging length [cm]:	11.6
Packaging width [cm]:	11.6
Packaging height [cm]:	14.3
Net Weight [g]:	410

OEN Number

PORSCHE:	997 103 030 30
PORSCHE:	997 103 030 31
PORSCHE:	997 103 130 28
