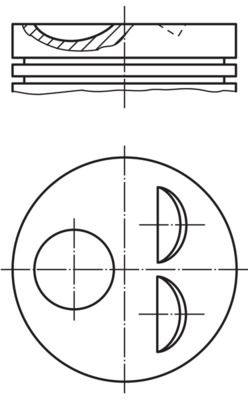

MAHLE 503 96 00 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 503 96 00 Piston

EAN: 4009026568712

293.63 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Standard Size [STD]:
Cylinder Bore [mm]:	104
Length [mm]:	63.3
Compression Height [mm]:	40.75
Bolt length [mm]:	65
Bolt Ø [mm]:	24
Recess Depth 1 [mm]:	2.3
Recess Diameter [mm]:	21
Valve pocket depth 1 [mm]:	4.2
Valve pocket depth 2 [mm]:	2.3
Surface:	iron-coated
Top land height [mm]:	8
Production Number:	104 P 9
Piston Clearance [mm]:	0.02
Component Number:	1.R1.75 IF Cr P
Component Number:	2. M2.0 IW Cr P
Component Number:	3. DSF 3.0 Cr
Packaging length [cm]:	11.6
Packaging width [cm]:	11.6
Packaging height [cm]:	14.3
Net Weight [g]:	800

OEN Number

PORSCHE:	944 103 09 900
PORSCHE:	944 103 09 910
PORSCHE:	944 103 09 920
