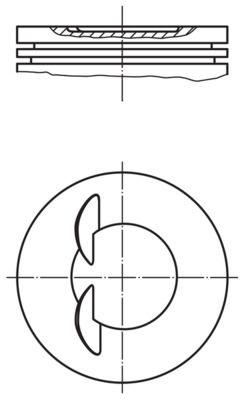

MAHLE 503 91 00 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 503 91 00 Piston

EAN: 4009026568750

252.56 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Standard Size [STD]:
Cylinder Bore [mm]:	100
Length [mm]:	74.8
Compression Height [mm]:	40.75
Bolt length [mm]:	63
Bolt Ø [mm]:	24
Recess Depth 1 [mm]:	1.5
Recess Diameter [mm]:	47
Valve pocket depth 1 [mm]:	2.36
Valve pocket depth 2 [mm]:	2.75
Surface:	iron-coated
Top land height [mm]:	7.5
Production Number:	100 L 79
Piston Clearance [mm]:	0.01
Component Number:	1. R1.5 IF Cr P
Component Number:	2.M1.75 IW Cr P
Component Number:	3. DSF 3.0 Cr
Packaging length [cm]:	11.6
Packaging width [cm]:	11.6
Packaging height [cm]:	14.3
Net Weight [g]:	770

OEN Number

PORSCHE:	944 103 07 403
PORSCHE:	944 103 07 453
PORSCHE:	944 103 07 463
PORSCHE:	944 103 07 473
PORSCHE:	944 103 08 801
PORSCHE:	944 103 08 802
PORSCHE:	944 103 08 811
PORSCHE:	944 103 19 800
PORSCHE:	944 103 19 810
PORSCHE:	944 103 19 820
