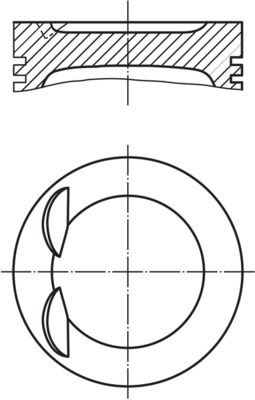

MAHLE 503 86 01 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 503 86 01 Piston

EAN: 4009026568828

252.56 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Cylinder Bore [mm]:	100.5
Length [mm]:	74.8
Compression Height [mm]:	40.75
Bolt length [mm]:	63
Bolt Ø [mm]:	24
Recess Depth 1 [mm]:	2.9
Recess Diameter [mm]:	67
Valve pocket depth 1 [mm]:	3.2
Valve pocket depth 2 [mm]:	2.8
Surface:	iron-coated
Top land height [mm]:	7.5
Production Number:	100 L 78
Piston Clearance [mm]:	0.01
Packaging length [cm]:	11.6
Packaging width [cm]:	11.6
Packaging height [cm]:	14.3
Net Weight [g]:	770

OEN Number

PORSCHE:	944 103 07 464
PORSCHE:	944 103 07 474
PORSCHE:	944 103 09 152
PORSCHE:	944 103 09 154
PORSCHE:	944 103 09 162
PORSCHE:	944 103 09 172
