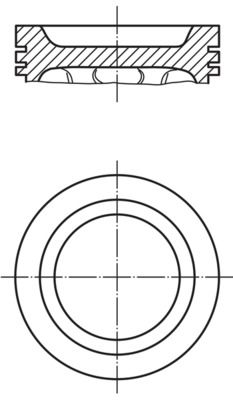

MAHLE 503 52 01 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 503 52 01 Piston

EAN: 4009026569269

330.54 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Cylinder Bore [mm]:	87.01
Length [mm]:	74.6
Compression Height [mm]:	45
Bolt length [mm]:	64
Bolt Ø [mm]:	24
Recess Depth 1 [mm]:	17
Recess Diameter [mm]:	62
Surface:	Tin-plated
Top land height [mm]:	8
Production Number:	86 V 53
Component Number:	1. R 1.5 Cr
Component Number:	2. NM 1.75 P
Component Number:	3. DSF 3.0 Cr
Packaging height [cm]:	12.8
Net Weight [g]:	680
Packaging length [cm]:	9.5
Packaging width [cm]:	9.5

OEN Number

PORSCHE:	931 103 05 501
PORSCHE:	931 103 05 511
PORSCHE:	931 103 05 521
PORSCHE:	931 103 55 001
PORSCHE:	931 103 55 011
PORSCHE:	931 103 55 021
PORSCHE:	931 103 950 01
PORSCHE:	931 103 955 01
