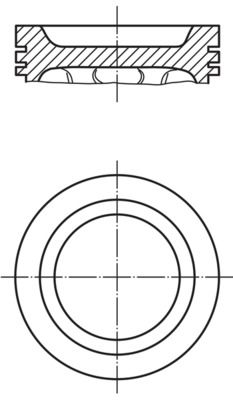

MAHLE 503 52 00 Piston

EAN: 4009026684962

330.54 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Standard Size [STD]:
Cylinder Bore [mm]:	86.51
Length [mm]:	74.6
Compression Height [mm]:	45
Bolt length [mm]:	64
Bolt Ø [mm]:	24
Recess Depth 1 [mm]:	17
Recess Diameter [mm]:	62
Surface:	Tin-plated
Top land height [mm]:	8
Production Number:	86 V 53
Component Number:	1. R 1.5 Cr
Component Number:	2. NM 1.75 P
Component Number:	3. DSF 3.0 Cr
Packaging height [cm]:	12.8
Net Weight [g]:	691
Packaging length [cm]:	9.5
Packaging width [cm]:	9.5

OEN Number

PORSCHE:	931 103 04 801
PORSCHE:	931 103 05 101
PORSCHE:	931 103 05 111
PORSCHE:	931 103 05 121
PORSCHE:	931 103 51 011
PORSCHE:	931 103 51 021
PORSCHE:	931 103 910 01
PORSCHE:	931 103 951 01
