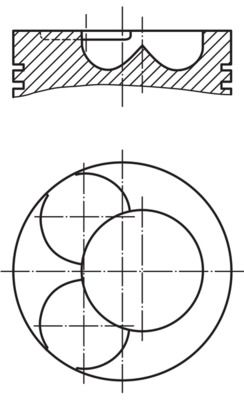

MAHLE 213 03 00 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 213 03 00 Piston

EAN: 4009026551646

290.90 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Cylinder Bore [mm]:	130
Length [mm]:	169.5
Compression Height [mm]:	101
Bolt length [mm]:	111
Bolt Ø [mm]:	48
Recess Depth 1 [mm]:	25.5
Recess Diameter [mm]:	79
Valve pocket depth 1 [mm]:	4
Machined:	with cut-out for oil jet
Surface:	Hard Anodized
Supplementary Article/Info 2:	with piston ring carrier
Supplementary Article/Info 2:	without cooling duct
Production Number:	130 L 50
Piston Clearance [mm]:	0.14
Component Number:	1. T 3.16 Cr P
Component Number:	2. M 3.16 Cr P
Component Number:	3. M 3.16 Cr P
Component Number:	4. DSF6.33 Cr P
Net Weight [g]:	4,515
Packaging length [cm]:	8.5
Packaging width [cm]:	8.5
Packaging height [cm]:	8.6

OEN Number

DAF:	12 39 22 8
