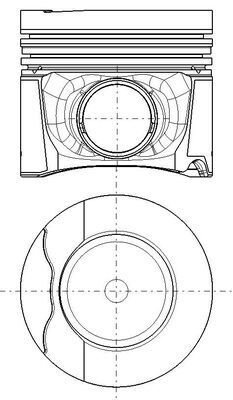

MAHLE 037 PI 00152 000 Piston
EAN: 4057635223683
141.79 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 82 |
| Length [mm]: | 71.1 |
| Compression Height [mm]: | 46.1 |
| Bolt Length [mm]: | 65 |
| Bolt Head Diameter [mm]: | 29 |
| Recess Depth 1 [mm]: | 13.43 |
| Recess Diameter [mm]: | 48.3 |
| Valve Pocket Depth 1 [mm]: | 0.75 |
| Machined: | with cut-out for oil jet |
| Surface: | EvoGlide® coated |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Supplementary Article/Supplementary Info 2: | without cooling duct |
| Top Land Height [mm]: | 10 |
| Supplementary Article/Supplementary Info: | cooled piston ring carrier |
| Production Number: | 82 L 175 |
| Component Number: | 1. R2.00 IF PVD |
| Component Number: | 2. M1.75 IFU P |
| Component Number: | 3. DSF2.00 PVD |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 790 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
Similar Spare Parts
| NÜRAL: | 87-454100-00 |
Compatibility
