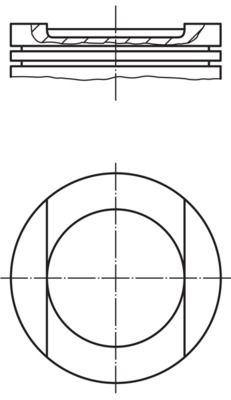

MAHLE 034 94 02 Piston
EAN: 4009026547045
81.75 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 83.01 |
| Length [mm]: | 60.2 |
| Compression Height [mm]: | 30.5 |
| Bolt length [mm]: | 56 |
| Bolt Ø [mm]: | 21 |
| Recess Depth 1 [mm]: | 4.65 |
| Recess Diameter [mm]: | 61.46 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Top land height [mm]: | 6.5 |
| Production Number: | 82 V 117 |
| Piston Clearance [mm]: | 0.045 |
| Component Number: | 1. M 1.2 Mo |
| Component Number: | 2. M 1.5 IW |
| Component Number: | 3. DSF 2.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 452 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 078107081 |
| AUDI: | 078107081A |
| AUDI: | 078107081G |
| AUDI: | 078107107 |
| AUDI: | 078107107A |
| AUDI: | 078107107G |
| AUDI: | 78107081 |
| AUDI: | 78107107 |
| VW: | 078 107 081 |
| VW: | 078 107 081 A |
| VW: | 078 107 081 G |
| VW: | 078 107 107 |
| VW: | 078 107 107 A |
| VW: | 078 107 107 G |
| VW: | 781 070 81 |
| VW: | 781 071 07 |
| CUPRA: | 078107081 |
| CUPRA: | 078107081A |
| CUPRA: | 078107081G |
| CUPRA: | 078107107 |
| CUPRA: | 078107107A |
| CUPRA: | 078107107G |
| CUPRA: | 78107081 |
| CUPRA: | 78107107 |
Compatibility
