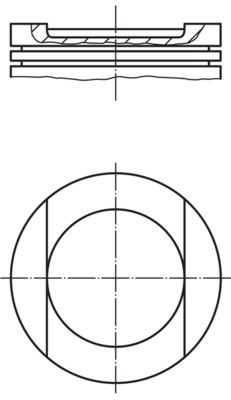

MAHLE 034 94 00 Piston
EAN: 4009026547069
81.75 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 82.51 |
| Length [mm]: | 60.5 |
| Compression Height [mm]: | 30.8 |
| Bolt length [mm]: | 56 |
| Bolt Ø [mm]: | 21 |
| Recess Depth 1 [mm]: | 4.65 |
| Recess Diameter [mm]: | 61.46 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Top land height [mm]: | 6.8 |
| Production Number: | 82 V 117 |
| Piston Clearance [mm]: | 0.045 |
| Component Number: | 1. M 1.2 Mo |
| Component Number: | 2. M 1.5 IW |
| Component Number: | 3. DSF 2.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 466 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 078107065 |
| AUDI: | 078107065AD |
| AUDI: | 078107065AH |
| AUDI: | 078107065F |
| AUDI: | 078107065G |
| AUDI: | 078107065L |
| AUDI: | 078107065S |
| AUDI: | 078107065T |
| AUDI: | 078107099G |
| AUDI: | 078107103F |
| AUDI: | 078107103G |
| AUDI: | 78107065 |
| VW: | 078 107 065 |
| VW: | 078 107 065 A D |
| VW: | 078 107 065 A H |
| VW: | 078 107 065 F |
| VW: | 078 107 065 G |
| VW: | 078 107 065 L |
| VW: | 078 107 065 S |
| VW: | 078 107 065 T |
| VW: | 078 107 099 G |
| VW: | 078 107 103 F |
| VW: | 078 107 103 G |
| VW: | 781 070 65 |
| CUPRA: | 078107065 |
| CUPRA: | 078107065AD |
| CUPRA: | 078107065AH |
| CUPRA: | 078107065F |
| CUPRA: | 078107065G |
| CUPRA: | 078107065L |
| CUPRA: | 078107065S |
| CUPRA: | 078107065T |
| CUPRA: | 078107099G |
| CUPRA: | 078107103F |
| CUPRA: | 078107103G |
| CUPRA: | 78107065 |
