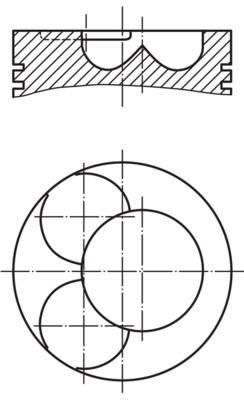

MAHLE 034 90 00 Piston
EAN: 4009026547168
125.17 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Fitting Position: | to cylinder 1 |
| Fitting Position: | to cylinder 2 |
| Fitting Position: | for cylinder 1-2 |
| Cylinder Bore [mm]: | 81.01 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.75 |
| Bolt length [mm]: | 68 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.2 |
| Recess Diameter [mm]: | 39.6 |
| Valve pocket depth 1 [mm]: | 1.35 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | without cooling duct |
| Top land height [mm]: | 9 |
| Production Number: | 81 L 33 |
| Piston Clearance [mm]: | 0.05 |
| Component Number: | 1. R 2.5 IW Mo |
| Component Number: | 2. M 2.0 IFU |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 835 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 046107065AB |
| AUDI: | 046107065AK |
| AUDI: | 046107065G |
| AUDI: | 046107103AH |
| AUDI: | 046107103AT |
| AUDI: | 046107103M |
| AUDI: | 9125674 |
| AUDI: | 9186557 |
| AUDI: | 9186659 |
| VW: | 046 107 065 A B |
| VW: | 046 107 065 A K |
| VW: | 046 107 065 G |
| VW: | 046 107 103 A H |
| VW: | 046 107 103 A T |
| VW: | 046 107 103 M |
| VW: | 912 567 4 |
| VW: | 918 655 7 |
| VW: | 918 665 9 |
| CUPRA: | 046107065AB |
| CUPRA: | 046107065AK |
| CUPRA: | 046107065G |
| CUPRA: | 046107103AH |
| CUPRA: | 046107103AT |
| CUPRA: | 046107103M |
| CUPRA: | 9125674 |
| CUPRA: | 9186557 |
| CUPRA: | 9186659 |
