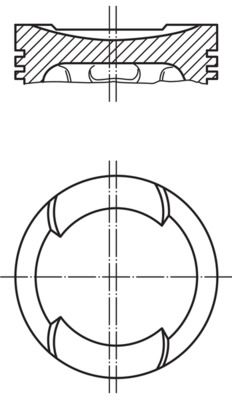

MAHLE 034 65 03 Piston
EAN: 4009026547557
136.32 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 80.51 |
| Length [mm]: | 71 |
| Compression Height [mm]: | 40 |
| Bolt length [mm]: | 63 |
| Bolt Ø [mm]: | 22 |
| Recess Depth 1 [mm]: | 5.8 |
| Recess Diameter [mm]: | 63.5 |
| Valve pocket depth 1 [mm]: | 1.8 |
| Surface: | Tin-plated |
| Top land height [mm]: | 9.8 |
| Production Number: | 79 L 110 |
| Piston Clearance [mm]: | 0.03 |
| Component Number: | 1. R1.75 IF Cr |
| Component Number: | 2. NM 2.0 |
| Component Number: | 3. DSF 4.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 509 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 035107091 |
| AUDI: | 035107109 |
| AUDI: | 35107091 |
| AUDI: | 35107109 |
| VW: | 035 107 091 |
| VW: | 035 107 109 |
| VW: | 351 070 91 |
| VW: | 351 071 09 |
| CUPRA: | 035107091 |
| CUPRA: | 035107109 |
| CUPRA: | 35107091 |
| CUPRA: | 35107109 |
Compatibility
