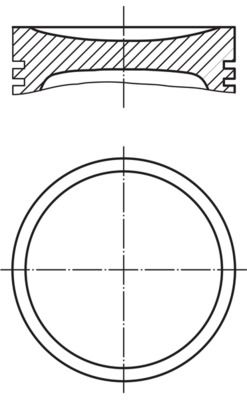

MAHLE 034 54 03 Piston
EAN: 4009026547687
90.37 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 80.51 |
| Length [mm]: | 73.5 |
| Compression Height [mm]: | 41.5 |
| Bolt length [mm]: | 55 |
| Bolt Ø [mm]: | 22 |
| Recess Depth 1 [mm]: | 6.1 |
| Recess Diameter [mm]: | 65.1 |
| Top land height [mm]: | 8 |
| Production Number: | 79 V 60 |
| Piston Clearance [mm]: | 0.025 |
| Component Number: | 1. R1.75 IF Cr |
| Component Number: | 2. NM 2.0 |
| Component Number: | 3. DSF 4.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 509 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 049107091AF |
| AUDI: | 049107091J |
| AUDI: | 049107109AF |
| AUDI: | 49107091AF |
| VW: | 049 107 091 A F |
| VW: | 049 107 091 J |
| VW: | 049 107 109 A F |
| VW: | 49107091AF |
| CUPRA: | 049107091AF |
| CUPRA: | 049107091J |
| CUPRA: | 049107109AF |
| CUPRA: | 49107091AF |
