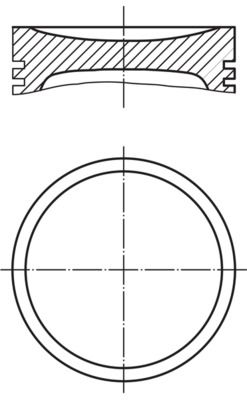

MAHLE 034 18 02 Piston
EAN: 4009026547816
107.97 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 75.51 |
| Length [mm]: | 77.2 |
| Compression Height [mm]: | 45.2 |
| Bolt length [mm]: | 63 |
| Bolt Ø [mm]: | 22 |
| Recess Depth 1 [mm]: | 4.5 |
| Recess Diameter [mm]: | 57.8 |
| Surface: | Tin-plated |
| Top land height [mm]: | 8 |
| Production Number: | 75 V 48 |
| Piston Clearance [mm]: | 0.03 |
| Component Number: | 1. R2.0 IF Cr P |
| Component Number: | 2. NM 2.5 |
| Component Number: | 3. G 4.0 P |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 531 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 030107107C |
| AUDI: | 056107081E |
| AUDI: | 056107081T |
| AUDI: | 056107107E |
| AUDI: | 56107081T |
| AUDI: | ZBA198107C |
| VW: | 030 107 107 C |
| VW: | 056 107 081 E |
| VW: | 056 107 081 T |
| VW: | 056 107 107 E |
| VW: | 56107081T |
| VW: | ZBA 198 107 C |
| CUPRA: | 030107107C |
| CUPRA: | 056107081E |
| CUPRA: | 056107081T |
| CUPRA: | 056107107E |
| CUPRA: | 56107081T |
| CUPRA: | ZBA198107C |
