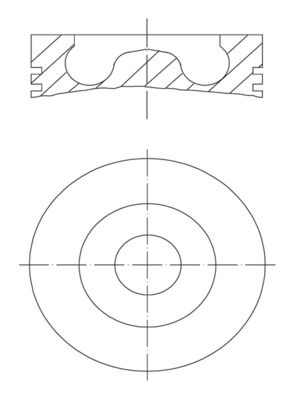

MAHLE 033 PI 00100 000 Piston
EAN: 4009026926536
217.69 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 83.01 |
| Length [mm]: | 71 |
| Compression Height [mm]: | 46.45 |
| Bolt length [mm]: | 68 |
| Bolt Ø [mm]: | 30 |
| Recess Depth 1 [mm]: | 13.6 |
| Recess Diameter [mm]: | 45 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | without cooling duct |
| Top land height [mm]: | 10 |
| Production Number: | 83 L 57 |
| Piston Clearance [mm]: | 0.06 |
| Component Number: | 1. R 2.0 CrK |
| Component Number: | 2. M2.0 IFU Mo |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 710 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 059107065AR |
| AUDI: | 059107065BK |
| AUDI: | 059107075AD |
| AUDI: | 059107103AR |
| VW: | 059 107 065 A R |
| VW: | 059 107 065 B K |
| VW: | 059 107 075 A D |
| VW: | 059 107 103 A R |
| CUPRA: | 059107065AR |
| CUPRA: | 059107065BK |
| CUPRA: | 059107075AD |
| CUPRA: | 059107103AR |
Compatibility
