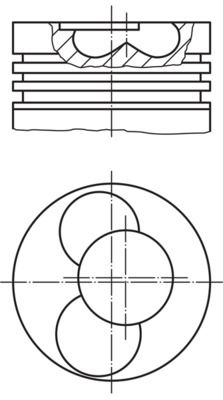

MAHLE 033 06 02 Piston
EAN: 4009026548264
169.42 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Fitting Position: | to cylinder 1 |
| Fitting Position: | to cylinder 2 |
| Fitting Position: | for cylinder 1-2 |
| Cylinder Bore [mm]: | 80.01 |
| Length [mm]: | 71.7 |
| Compression Height [mm]: | 45.45 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.65 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 1.35 |
| Valve pocket depth 2 [mm]: | 1.55 |
| Machined: | with cut-out for oil jet |
| Surface: | Hard Anodized |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | without cooling duct |
| Top land height [mm]: | 9 |
| Production Number: | 79 L 41 |
| Piston Clearance [mm]: | 0.04 |
| Component Number: | 1. R 1.75 Cr P |
| Component Number: | 2.M2.0 IFU Cr P |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 783 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
