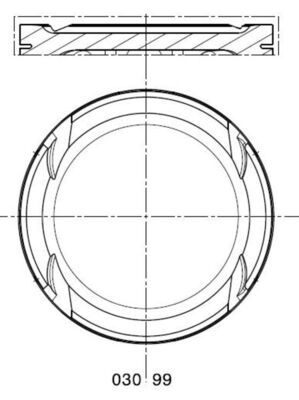

MAHLE 030 99 00 Piston
EAN: 4009026883259
50.22 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 76.51 |
| Length [mm]: | 50.3 |
| Compression Height [mm]: | 29.27 |
| Bolt length [mm]: | 54 |
| Bolt Ø [mm]: | 17 |
| Recess Depth 1 [mm]: | 2.6 |
| Recess Diameter [mm]: | 62.1 |
| Valve pocket depth 1 [mm]: | 2.2 |
| Valve pocket depth 2 [mm]: | 1.4 |
| Surface: | Coated |
| Top land height [mm]: | 6 |
| Production Number: | 76 L 110 |
| Piston Clearance [mm]: | 0.03 |
| Component Number: | 1. R 1.2 N |
| Component Number: | 2. M 1.5 |
| Component Number: | 3. 3S 2.5 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 351 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 036107065AH |
| AUDI: | 036107065AP |
| AUDI: | 036107065BS |
| AUDI: | 36107065AP |
| VW: | 036 107 065 A H |
| VW: | 036 107 065 A P |
| VW: | 036 107 065 B S |
| VW: | 36107065AP |
| CUPRA: | 036107065AH |
| CUPRA: | 036107065AP |
| CUPRA: | 036107065BS |
| CUPRA: | 36107065AP |
Similar Spare Parts
| KOLBENSCHMIDT: | 99563601 |
