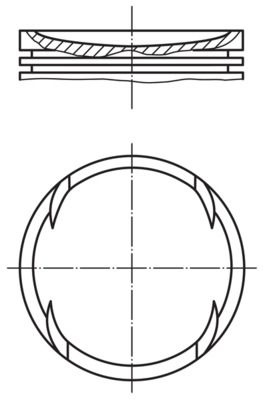

MAHLE 030 89 02 Piston
EAN: 4009026579114
53.78 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 77.01 |
| Length [mm]: | 58.5 |
| Compression Height [mm]: | 28.92 |
| Bolt length [mm]: | 52 |
| Bolt Ø [mm]: | 17 |
| Recess Depth 1 [mm]: | 1.9 |
| Recess Diameter [mm]: | 62 |
| Valve pocket depth 1 [mm]: | 2.7 |
| Valve pocket depth 2 [mm]: | 2.2 |
| Surface: | Coated |
| Top land height [mm]: | 6 |
| Production Number: | 76 L 99 |
| Piston Clearance [mm]: | 0.004 |
| Component Number: | 1. R 1.2 N |
| Component Number: | 2. M 1.5 |
| Component Number: | 3. SSF 2.5 |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 335 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
Similar Spare Parts
| ENGITECH: | ENT050004 050 |
| NÜRAL: | 87-116107-00 |
