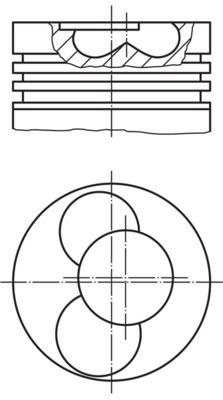

MAHLE 030 88 00 Piston
EAN: 4009026549001
97.86 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 81.01 |
| Length [mm]: | 69.7 |
| Compression Height [mm]: | 45.75 |
| Bolt length [mm]: | 68 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 16.8 |
| Recess Diameter [mm]: | 46 |
| Valve pocket depth 1 [mm]: | 1.3 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | without cooling duct |
| Top land height [mm]: | 9 |
| Production Number: | 81 L 51 |
| Piston Clearance [mm]: | 0.05 |
| Component Number: | 1. R2.5 IW CrK |
| Component Number: | 2. M 2.0 IFU P |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 795 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 074107065R |
| VW: | 074 107 065 R |
| CUPRA: | 074107065R |
Similar Spare Parts
| KOLBENSCHMIDT: | 40734600 |
| NÜRAL: | 87-501500-40 |
Compatibility
