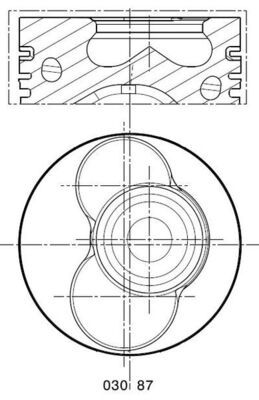

MAHLE 030 87 00 Piston
EAN: 4009026549049
92.12 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Fitting Position: | to cylinder 3 |
| Fitting Position: | to cylinder 4 |
| Fitting Position: | for cylinder 3-4 |
| Cylinder Bore [mm]: | 79.51 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.8 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.5 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 1.15 |
| Valve pocket depth 2 [mm]: | 1.15 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Top land height [mm]: | 12 |
| Production Number: | 79 L 79 |
| Piston Clearance [mm]: | 0.07 |
| Component Number: | 1. R 1.75 CrK |
| Component Number: | 2. M 2.0 IFU |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 880 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 038107065CJ |
| AUDI: | 038107065EM |
| AUDI: | 038107065EP |
| AUDI: | 038107065FR |
| AUDI: | 038107065GK |
| AUDI: | 038107065GM |
| AUDI: | 038107101CB |
| AUDI: | 38107065EM |
| AUDI: | 38107065GM |
| VW: | 038 107 065 C J |
| VW: | 038 107 065 E M |
| VW: | 038 107 065 E P |
| VW: | 038 107 065 F R |
| VW: | 038 107 065 G K |
| VW: | 038 107 065 G M |
| VW: | 038 107 101 C B |
| VW: | 38107065EM |
| VW: | 38107065GM |
| CUPRA: | 038107065CJ |
| CUPRA: | 038107065EM |
| CUPRA: | 038107065EP |
| CUPRA: | 038107065FR |
| CUPRA: | 038107065GK |
| CUPRA: | 038107065GM |
| CUPRA: | 038107101CB |
| CUPRA: | 38107065EM |
| CUPRA: | 38107065GM |
Similar Spare Parts
| ENGITECH: | ENT050044 STD |
| NÜRAL: | 87-114900-35 |
| NÜRAL: | 87-114900-46 |
| NÜRAL: | 87-114900-70 |
