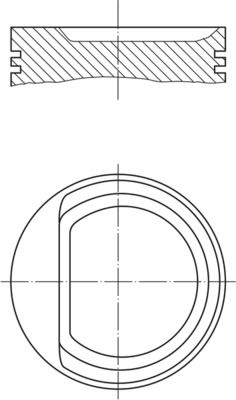

MAHLE 030 71 00 Piston
EAN: 4009026549193
77.38 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 76.51 |
| Length [mm]: | 48.7 |
| Compression Height [mm]: | 28.7 |
| Bolt length [mm]: | 46 |
| Bolt Ø [mm]: | 17 |
| Recess Depth 1 [mm]: | 7.3 |
| Recess Diameter [mm]: | 61.6 |
| Surface: | Coated |
| Top land height [mm]: | 5 |
| Production Number: | 76 L 82 |
| Piston Clearance [mm]: | 0.04 |
| Component Number: | 2. M 1.5 |
| Component Number: | 3. 3S 2.5 Cr |
| Net Weight [g]: | 297 |
| Packaging length [cm]: | 9.1 |
| Packaging width [cm]: | 9.1 |
| Packaging height [cm]: | 9.6 |
OEN Number
| AUDI: | 03D107065C |
| AUDI: | 03D107065D |
| AUDI: | 03D107065E |
| AUDI: | 03D107065F |
| AUDI: | 03D107103E |
| AUDI: | 03D107103G |
| VW: | 03D 107 065 C |
| VW: | 03D 107 065 D |
| VW: | 03D 107 065 E |
| VW: | 03D 107 065 F |
| VW: | 03D 107 103 E |
| VW: | 03D 107 103 G |
| CUPRA: | 03D107065C |
| CUPRA: | 03D107065D |
| CUPRA: | 03D107065E |
| CUPRA: | 03D107065F |
| CUPRA: | 03D107103E |
| CUPRA: | 03D107103G |
Similar Spare Parts
| KOLBENSCHMIDT: | 99452600 |
