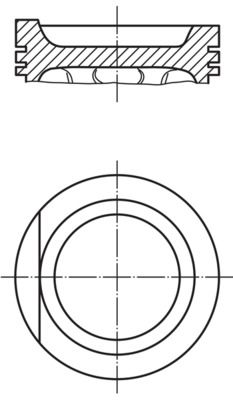

MAHLE 029 88 00 Piston
EAN: 4009026527351
160.91 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 81.01 |
| Length [mm]: | 71.5 |
| Compression Height [mm]: | 39.5 |
| Bolt length [mm]: | 67 |
| Bolt Ø [mm]: | 22 |
| Recess Depth 1 [mm]: | 8.6 |
| Recess Diameter [mm]: | 55 |
| Machined: | with cut-out for oil jet |
| Surface: | Tin-plated |
| Top land height [mm]: | 12.4 |
| Production Number: | 81 V 64 |
| Piston Clearance [mm]: | 0.03 |
| Component Number: | 1. M 1.5 Mo P |
| Component Number: | 2. NM 1.75 |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 560 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 027107065A |
| AUDI: | 029107065B |
| AUDI: | 037107065B |
| AUDI: | 037107065J |
| AUDI: | 037107103C |
| VW: | 027 107 065 A |
| VW: | 029 107 065 B |
| VW: | 037 107 065 B |
| VW: | 037 107 065 J |
| VW: | 037 107 103 C |
| CUPRA: | 027107065A |
| CUPRA: | 029107065B |
| CUPRA: | 037107065B |
| CUPRA: | 037107065J |
| CUPRA: | 037107103C |
Compatibility
