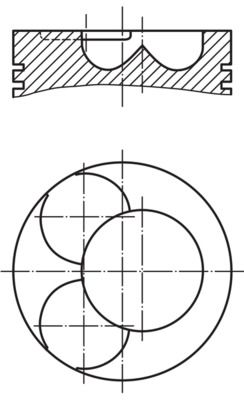

MAHLE 028 07 00 Piston
EAN: 4009026877166
93.81 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Fitting Position: | to cylinder 3 |
| Fitting Position: | to cylinder 4 |
| Fitting Position: | for cylinder 3-4 |
| Cylinder Bore [mm]: | 81.01 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.8 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.5 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 0.7 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Production Number: | 81 L 115 |
| Component Number: | 1. R 1.75 CrK |
| Component Number: | 2. M 2.0 IFU P |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 596 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 038107065HF |
| AUDI: | 038107065HL |
| AUDI: | 038107065KK |
| AUDI: | 038107065KM |
| VW: | 038 107 065 H L |
| VW: | 038 107 065 HF |
| VW: | 038 107 065 K K |
| VW: | 038 107 065 K M |
| CUPRA: | 038107065HF |
| CUPRA: | 038107065HL |
| CUPRA: | 038107065KK |
| CUPRA: | 038107065KM |
Similar Spare Parts
| KOLBENSCHMIDT: | 40409600 |
| NÜRAL: | 87-139500-20 |
