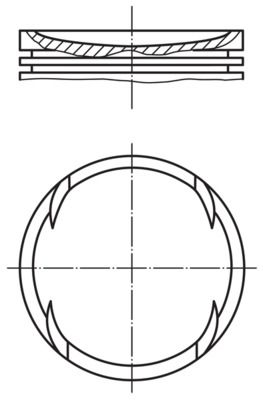

MAHLE 011 77 00 Piston
EAN: 4009026535851
66.56 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 86 |
| Length [mm]: | 55.4 |
| Compression Height [mm]: | 30.43 |
| Bolt length [mm]: | 61.5 |
| Bolt Ø [mm]: | 21 |
| Recess Depth 1 [mm]: | 0.85 |
| Recess Diameter [mm]: | 70 |
| Valve pocket depth 1 [mm]: | 1.93 |
| Surface: | Tin-plated |
| Production Number: | 86 V 121 |
| Piston Clearance [mm]: | 0.03 |
| Component Number: | 1. R 1.5 Mo |
| Component Number: | 2. NM 1.5 P |
| Component Number: | 3. 3S 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 484 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| OPEL: | 0623429 |
| OPEL: | 0623430 |
| OPEL: | 623 430 |
| OPEL: | 904 676 29 |
| OPEL: | 904 676 37 |
| OPEL: | 905 096 10 |
| OPEL: | 90509608 |
| OPEL: | 9106225 |
Similar Spare Parts
| KOLBENSCHMIDT: | 91023700 |
| NÜRAL: | 87-306800-10 |
