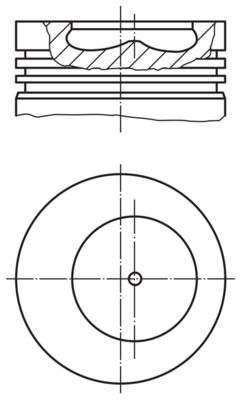

MAHLE 009 07 00 Piston
EAN: 4009026580639
124.30 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 93 |
| Length [mm]: | 96.8 |
| Compression Height [mm]: | 58.75 |
| Bolt length [mm]: | 78 |
| Bolt Ø [mm]: | 32 |
| Recess Depth 1 [mm]: | 18.4 |
| Recess Diameter [mm]: | 38 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Top land height [mm]: | 8.5 |
| Production Number: | 93 L 77 |
| Piston Clearance [mm]: | 0.08 |
| Component Number: | 1.T3.0 15° Cr P |
| Component Number: | 2. M2.0 IWU Mo |
| Component Number: | 3. DSF3.0 Cr P |
| Packaging length [cm]: | 11.6 |
| Packaging width [cm]: | 11.6 |
| Packaging height [cm]: | 14.3 |
| Net Weight [g]: | 1,414 |
OEN Number
| FIAT: | 0000098437928 |
| FIAT: | 1908617 |
| FIAT: | 1908618 |
| FIAT: | 97354027 |
| FIAT: | 98437928 |
| FIAT: | 98457397 |
| FIAT: | 99442902 |
| FIAT: | 99442904 |
| FIAT: | 99443639 |
| RENAULT: | 5001833243 |
| RENAULT: | 7701204701 |
Similar Spare Parts
| NÜRAL: | 87-520200-00 |
Compatibility
