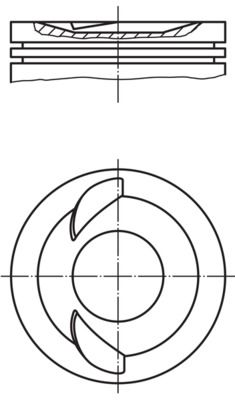

MAHLE 009 03 00 Piston
EAN:
144.53 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Cylinder Bore [mm]: | 84 |
| Length [mm]: | 69 |
| Compression Height [mm]: | 39 |
| Bolt length [mm]: | 69 |
| Bolt Ø [mm]: | 22 |
| Recess Depth 1 [mm]: | 6 |
| Recess Diameter [mm]: | 71 |
| Valve pocket depth 1 [mm]: | 1.8 |
| Top land height [mm]: | 9.5 |
| Production Number: | 84 V 209 |
| Piston Clearance [mm]: | 0.05 |
| Component Number: | 1.R1.5 IF CrK P |
| Component Number: | 2. NM 2.0 P |
| Component Number: | 3. GSF 3.94 P |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 646 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| FIAT: | 0005888595 |
| FIAT: | 0005888596 |
| FIAT: | 0005888597 |
| FIAT: | 0005890401 |
| FIAT: | 0005890402 |
| FIAT: | 0005890403 |
| FIAT: | 5888595 |
| FIAT: | 5888596 |
| FIAT: | 5888597 |
| FIAT: | 5890401 |
| FIAT: | 5890402 |
| FIAT: | 5890403 |
| FIAT: | 7641295 |
| FIAT: | 7641296 |
| FIAT: | 7641297 |
| FIAT: | 7641298 |
| FIAT: | 7641299 |
| FIAT: | 7689286 |
| FIAT: | 7689287 |
| FIAT: | 7689288 |
| FIAT: | 7689289 |
| FIAT: | 7689290 |
Compatibility
