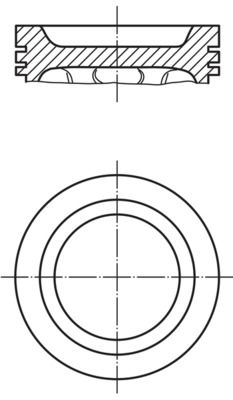

MAHLE 003 17 00 Piston

Product return within 30 days

Exchange&Return

Do you have questions about this product?

Fill out the form

Out of stock

MAHLE 003 17 00 Piston

EAN: 4009026516324

343.17 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Standard Size [STD]:
Cylinder Bore [mm]:	107.01
Length [mm]:	86.5
Compression Height [mm]:	46.5
Bolt length [mm]:	80
Bolt Ø [mm]:	26
Recess Depth 1 [mm]:	3.9
Recess Diameter [mm]:	80
Surface:	Tin-plated
Top land height [mm]:	9.8
Production Number:	107 V 2
Piston Clearance [mm]:	0.03
Component Number:	1.R1.75 IF Mo P
Component Number:	2. NM 2.5 Mo
Component Number:	3. DSF 4.0 Cr
Net Weight [g]:	1,068
Packaging length [cm]:	11.6
Packaging width [cm]:	11.6
Packaging height [cm]:	14.3

OEN Number

MERCEDES-BENZ:	100 030 68 17
MERCEDES-BENZ:	100 030 74 17
MERCEDES-BENZ:	A100 030 68 17
MERCEDES-BENZ:	A100 030 74 17
