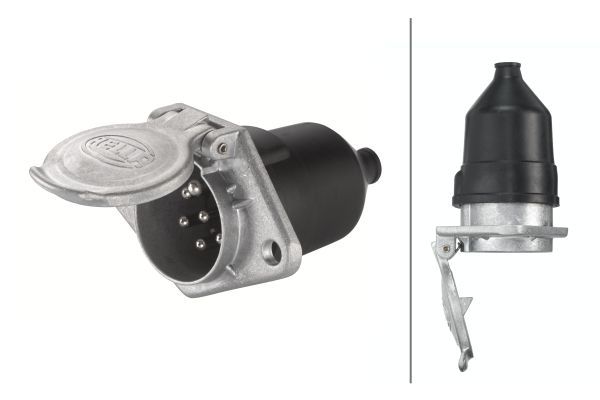

HELLA 8JB 003 833-031 Socket
EAN: 4082300193381
13.02 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Number of pins: | 7 |
| Voltage [V]: | 24 |
| DIN/ISO: | 1185 N-Typ |
| Cable Diameter from [mm]: | 9.5 |
| Cable Diameter to [mm]: | 12 |
| Cross Section [mm²] from: | 1.5 |
| Cross Section [mm²] to: | 2.5 |
| Current Strength from [A]: | 15 |
| Current Strength to [A]: | 20 |
| Temperature range from [°C]: | -25 |
| Temperature range to [°C]: | +75 |
| Width [mm]: | 67 |
| Socket Width [mm]: | 6.3 |
| Height [mm]: | 67 |
| Length [mm]: | 103 |
| Material: | Aluminium |
| Mounting Type: | Flat Plug-in Connector |
| Quantity: | 10 |
| Supplementary Article/Info 2: | with lid |
| Plug Type: | Blade Terminal |
| Assy./disassy. by qualified personnel required!: |
OEN Number
| JAEGER: | 036384 |
| JAEGER: | 111100 |
| YANMAR: | 5350658702 |
| SCHMITZ CARGOBULL: | 1023537 |
| TEREX: | 5350658702 |
| MAFI: | 000,579,2014 |
| SOMMER: | 2800089002 |
| FELDBINDER: | 1098091 |
Similar Spare Parts
| PE Automotive: | 000.325-00A |
