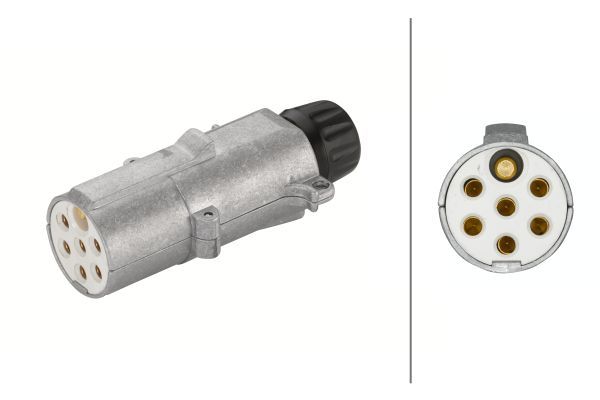

HELLA 8JA 003 832-011 Plug

Name: Plug
Brand: HELLA
Price: 9.19 EUR
Availability: InStock

EAN: 4082300193077

11.12 EUR

Inc. VAT 21%

Payments methods:

Technical Specifications

Number of pins:	7
DIN/ISO:	3731 S-Typ
Plug Type:	Blade Terminal
Connector/Clamp:	with cable gland
Material:	Aluminium
Colour:	silver
Voltage [V]:	24
Current Strength from [A]:	15
Current Strength to [A]:	20
Socket Width [mm]:	6.3
Cross Section [mm²] from:	1.5
Cross Section [mm²] to:	2.5
Temperature range from [°C]:	-30
Temperature range to [°C]:	+75
Quantity:	10
Assy./disassy. by qualified personnel required!:
