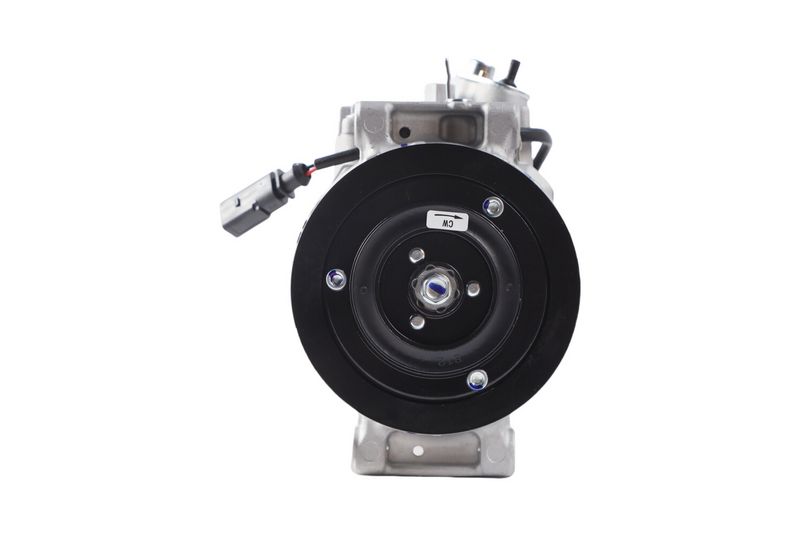

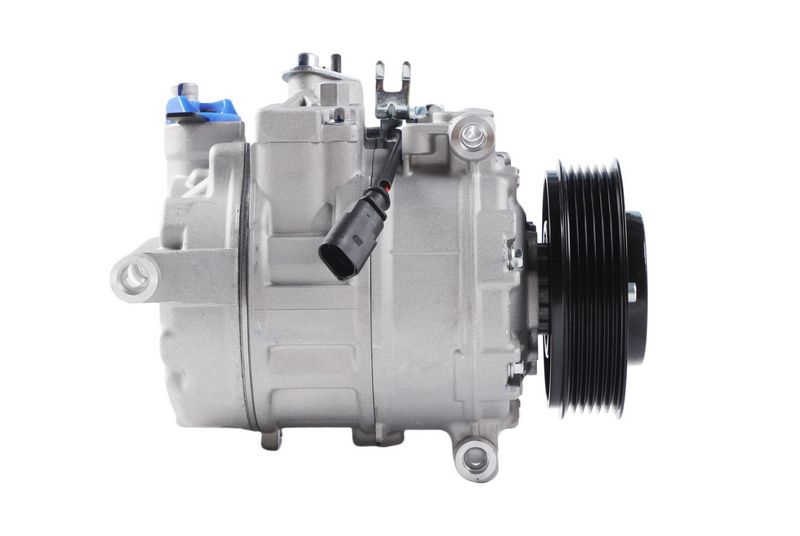

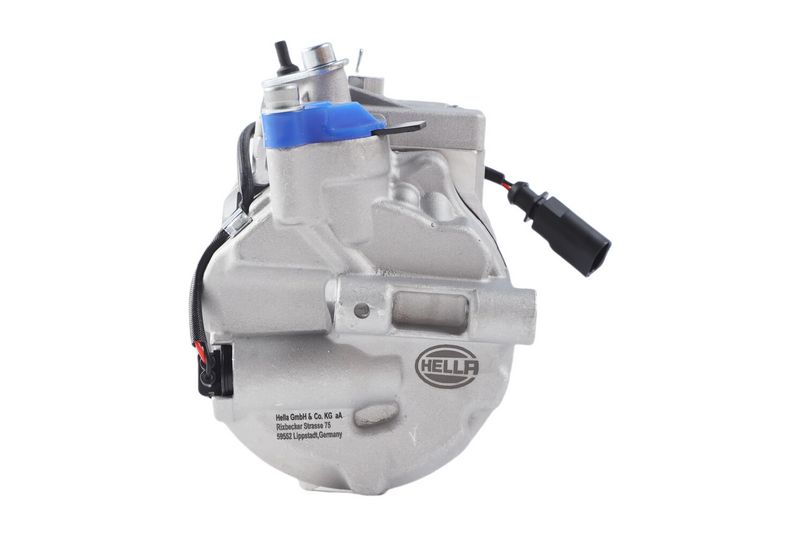

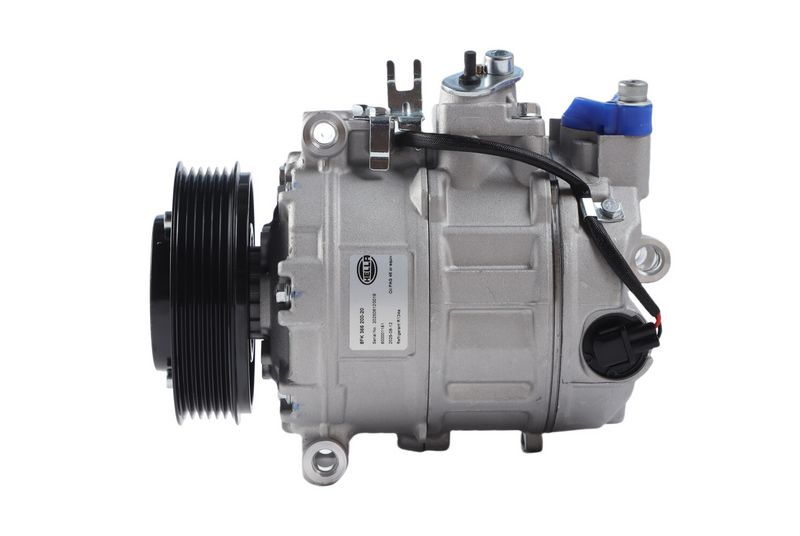

HELLA 8FK 366 200-201 Compressor, air conditioning
EAN: 4069842006232
334.30 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Manufacturer Restriction: | Denso |
| Compressor ID: | 7SEU17C |
| Voltage [V]: | 12 |
| Supplementary Article/Supplementary Info 2: | with magnetic clutch |
| Pulleys: | with V-ribbed belt pulley |
| Number of grooves: | 6 |
| Belt Pulley Ø [mm]: | 110 |
| Inlet Ø [mm]: | 28.4 |
| Outlet Ø [mm]: | 15.3 |
| Refrigerant: | R 134a |
| Compressor Oil: | PAG 46 |
| Supplementary Article/Supplementary Info 2: | with seal ring |
| Supplementary Article/Supplementary Info 2: | with PAG compressor oil |
| Oil Fill Quantity [ml]: | 100 |
| Assy./disassy. by qualified personnel required!: |
OEN Number
| AUDI: | 7L6 820 803 C |
| AUDI: | 7L6 820 803 F |
| AUDI: | 7L6 820 803 J |
| AUDI: | 7L6 820 803 K |
| AUDI: | 7L6 820 803 M |
| AUDI: | 7L6 820 803 Q |
| AUDI: | 7L6 820 803 T |
| AUDI: | 7P0 820 803 D |
| AUDI: | 7P0 820 803 N |
| PORSCHE: | 955 126 011 12 |
| VW: | 3D0 820 803 T |
| VW: | 7L6 820 803 C |
| VW: | 7L6 820 803 F |
| VW: | 7L6 820 803 J |
| VW: | 7L6 820 803 K |
| VW: | 7L6 820 803 M |
| VW: | 7L6 820 803 Q |
| VW: | 7L6 820 803 T |
| VW: | 7P0 820 803 D |
| VW: | 7P0 820 803 N |
| CUPRA: | 7L6 820 803 C |
| CUPRA: | 7L6 820 803 F |
| CUPRA: | 7L6 820 803 J |
| CUPRA: | 7L6 820 803 K |
| CUPRA: | 7L6 820 803 M |
| CUPRA: | 7L6 820 803 Q |
| CUPRA: | 7L6 820 803 T |
| CUPRA: | 7P0 820 803 D |
| CUPRA: | 7P0 820 803 N |
