BREMBO 09.9935.1X Brake Disc
EAN: 8020584229156
Ready for dispatch: 18 June, 2026
78.36 EUR
Inc. VAT 0%
Payments methods:

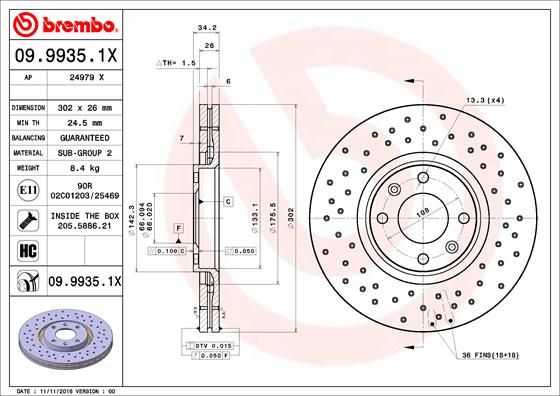

Technical Specifications
| Brake Disc Type: | perforated/vented |
| Brake Disc Thickness [mm]: | 26 |
| Number of Holes: | 4 |
| Supplementary Article/Info 2: | with bolts/screws |
| Height [mm]: | 34 |
| Centering Diameter [mm]: | 66 |
| Outer Diameter [mm]: | 302 |
| Machining: | High-carbon |
| Surface: | Coated |
| Minimum thickness [mm]: | 24.5 |
| Tightening Torque [Nm]: | 90 |
OEN Number
| CITROËN: | 1606308280 |
| CITROËN: | 1618859580 |
| CITROËN: | 4246C0 |
| CITROËN: | 424933 |
| CITROËN: | 424985 |
| CITROËN: | 9687602180 |
| CITROËN: | 9809266280 |
| PEUGEOT: | 1606308280 |
| PEUGEOT: | 1618859580 |
| PEUGEOT: | 4246P5 |
| PEUGEOT: | 424985 |
| PEUGEOT: | 9687602180 |
| PEUGEOT: | 9809266280 |
Similar Spare Parts
| A.B.S.: | 17590 |
| A.Z. Meisterteile: | AZMT-44-024-1233 |
| ABAKUS: | 231-03-152 |
| AP XENERGY: | X602307 |
| ASAM AUTOMOTIVE: | 102123 |
| ATE: | 24.0126-0140.1 |
| BENDIX Braking: | BDS1097 |
| BLUE PRINT: | ADP154318 |
| BORG & BECK: | BBD4468 |
| BOSCH: | 0 986 479 288 |
| BOSCH: | 0 986 479 D36 |
| BREMSI: | CD7442V |
| Brake ENGINEERING: | DI956489 |
| CHAMPION: | 562267CH |
| DACO Germany: | 600603 |
| DEEVO: | BD18640 |
| DELPHI: | BG4002 |
| DENCKERMANN: | B130502 |
| DON: | PCD11842 |
| Dr!ve+: | DP1010.11.0407 |
| EUROBRAKE: | 5815201938 |
| EUROBRAKE: | 5815311938 |
| FEBI BILSTEIN: | 30402 |
| FERODO: | DDF1442 |
| FERODO: | DDF1442C |
| FTE: | 9071270 |
| FTE: | BS5515 |
| GALFER: | B1.G226-0140.1 |
| GUTTMANN: | BD0240 |
| HELLA: | 8DD 355 111-321 |
| HELLA PAGID: | 8DD 355 111-321 |
| ICER: | 78BD4698-2 |
| JPN: | 30H9089-JPN |
| JURID: | 562267JC |
| JURID: | 562267JC-1 |
| KAVO PARTS: | BR-10068-C |
| KEY PARTS: | KBD4468 |
| MAGNETI MARELLI: | 361302040502 |
| MAGNETI MARELLI: | 360406139002 |
| MAPCO: | 15433 |
| MASTER-SPORT GERMANY: | 24012601401-PCS-MS |
| MASTER-SPORT GERMANY: | 24012601401-SET-MS |
| MASTER-SPORT GERMANY: | 24012601401PR-PCS-MS |
| MASTER-SPORT GERMANY: | 24012601401-SET-MSP |
| MASTER-SPORT GERMANY: | 24012601401PR-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012601401-PCS-MSP |
| MAXGEAR: | 19-1875 |
| MAXGEAR: | 19-1875MAX |
| MAXGEAR: | 19-1875SPORT |
| METZGER: | 6110475 |
| MEYLE: | 40-15 521 1001 |
| MINTEX: | MDC1755 |
| NECTO: | WN1392 |
| NK: | 201938 |
| NK: | 311938 |
| NK: | 341938 |
| OPEN PARTS: | BDA2068.20 |
| OPEN PARTS: | BDR2068.20 |
| ORIGINAL Schäferbart: | 315 27 469 01 11 |
| PAGID: | 54332 |
| PAGID: | 54332NC |
| PEMEBLA: | BNXBDS1097 |
| QUARO: | QD0940 |
| QUARO: | QD0940HC |
| R BRAKE: | 78RBD24698 |
| RAICAM: | RD00121 |
| RAP BRAKES: | R-D0455 |
| RECOFICIAL: | 78BD4698 |
| REMSA: | 6657.10 |
| RIDEX: | 82B1798 |
| ROADHOUSE: | 6657.10 |
| ROTINGER: | RT 20240 |
| ROTINGER: | RT 20240-GL |
| ROTINGER: | RT 20240-GL T3 |
| ROTINGER: | RT 20240-GL T5 |
| ROTINGER: | RT 20240-GL T6 |
| ROTINGER: | RT 20240-GL T9 |
| SIGMAUTO: | DBB442V |
| SRLine: | S71-0521 |
| SWAG: | 64 93 0402 |
| TEXTAR: | 89016100 |
| TEXTAR: | 92133200 |
| TEXTAR: | 92133203 |
| TOPRAN: | 722 455 |
| TRADEX FRANCE: | TBD1027 |
| TRADEX FRANCE: | DSQ-T27 |
| TRISCAN: | 8120 28121C |
| TRW: | DF4363 |
| VALEO: | 197232 |
| VALEO: | 672677 |
| VILLAR: | 628.2023 |
| WOKING: | D6657.10 |
| ZIMMERMANN: | 180.3023.20 |
| ZIMMERMANN: | 180.3023.52 |
