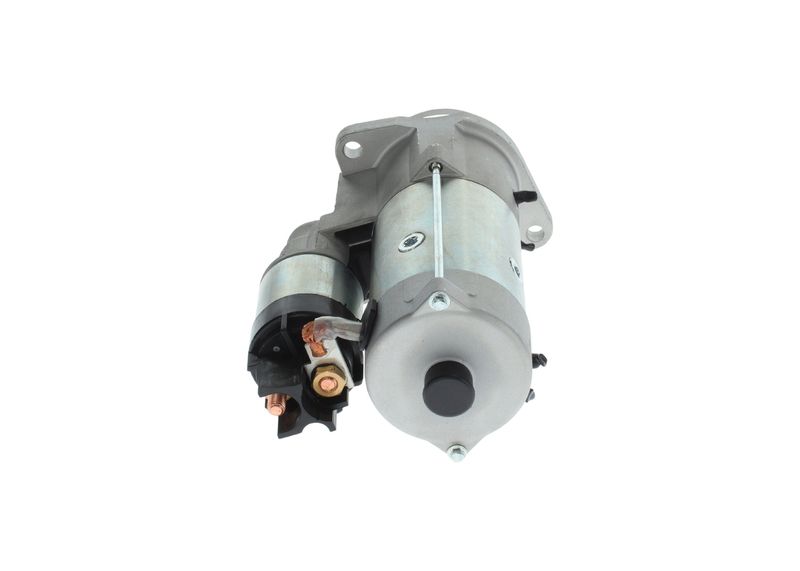

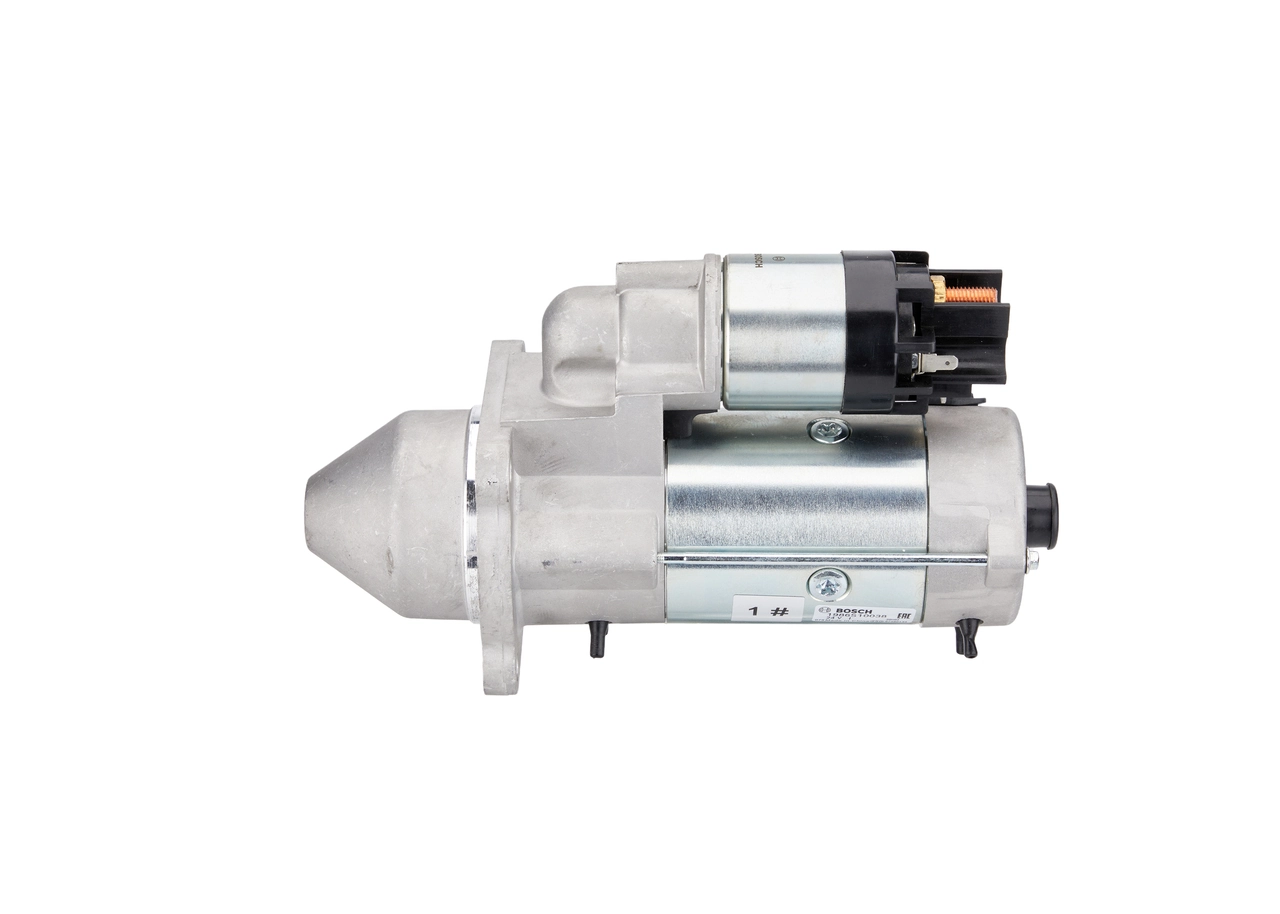

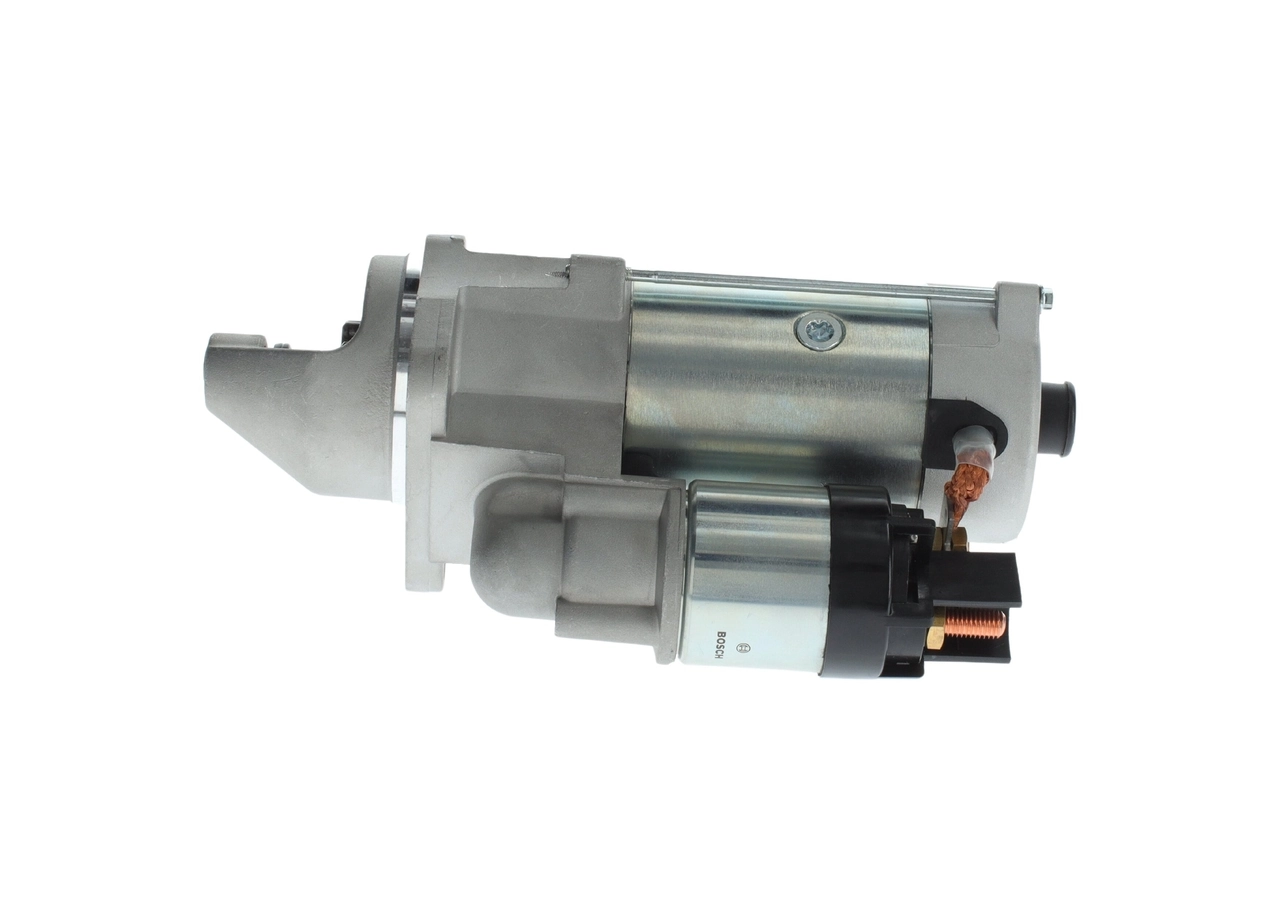

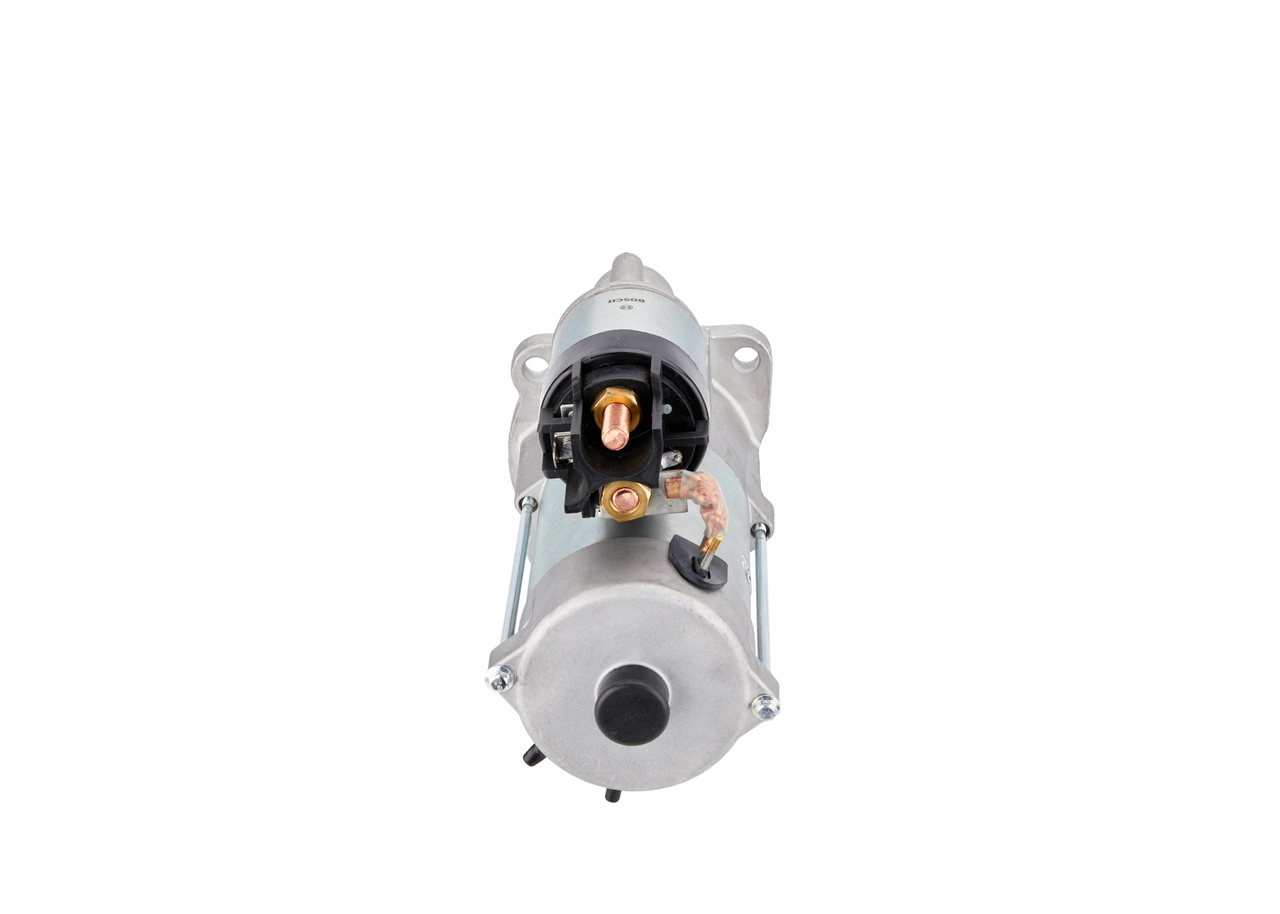

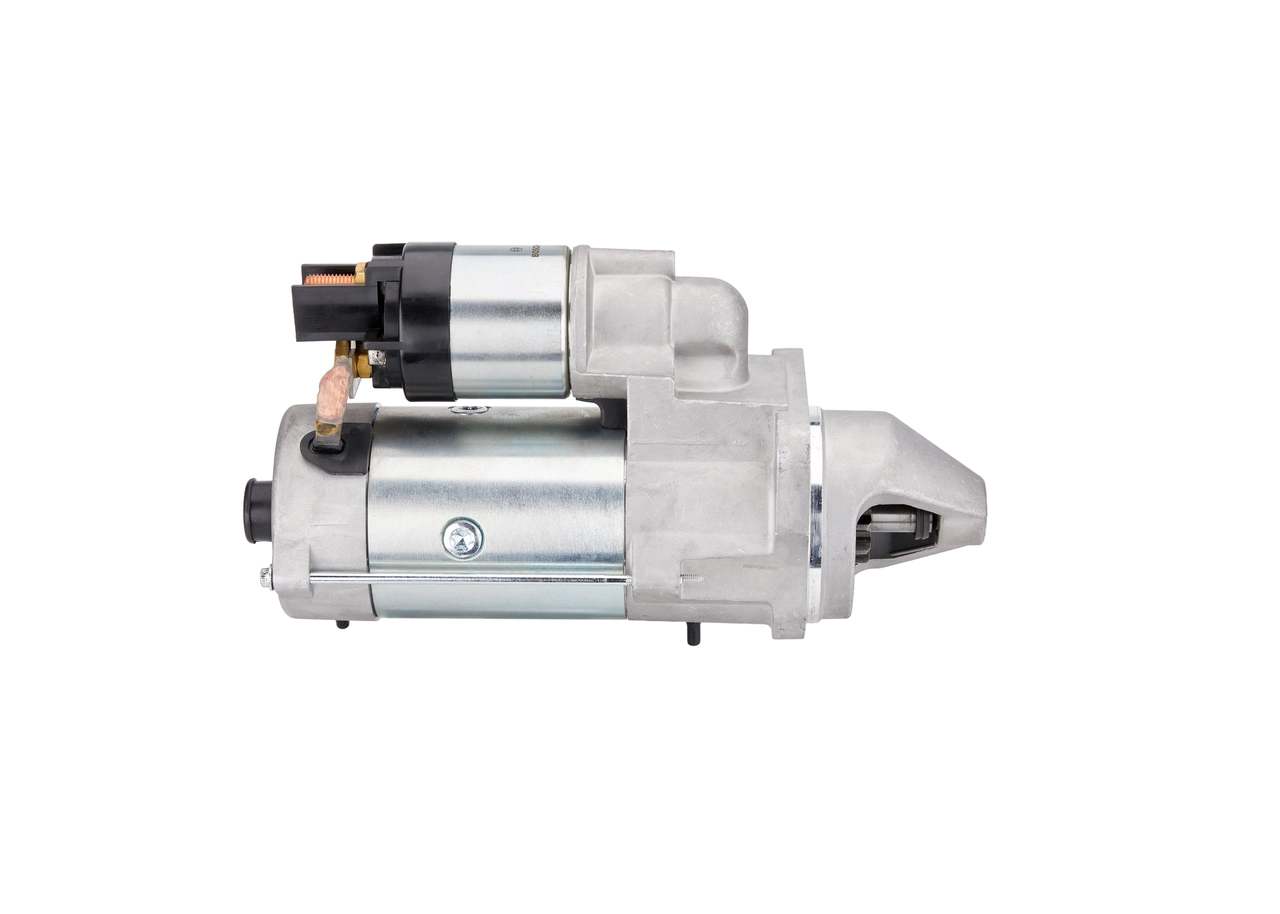

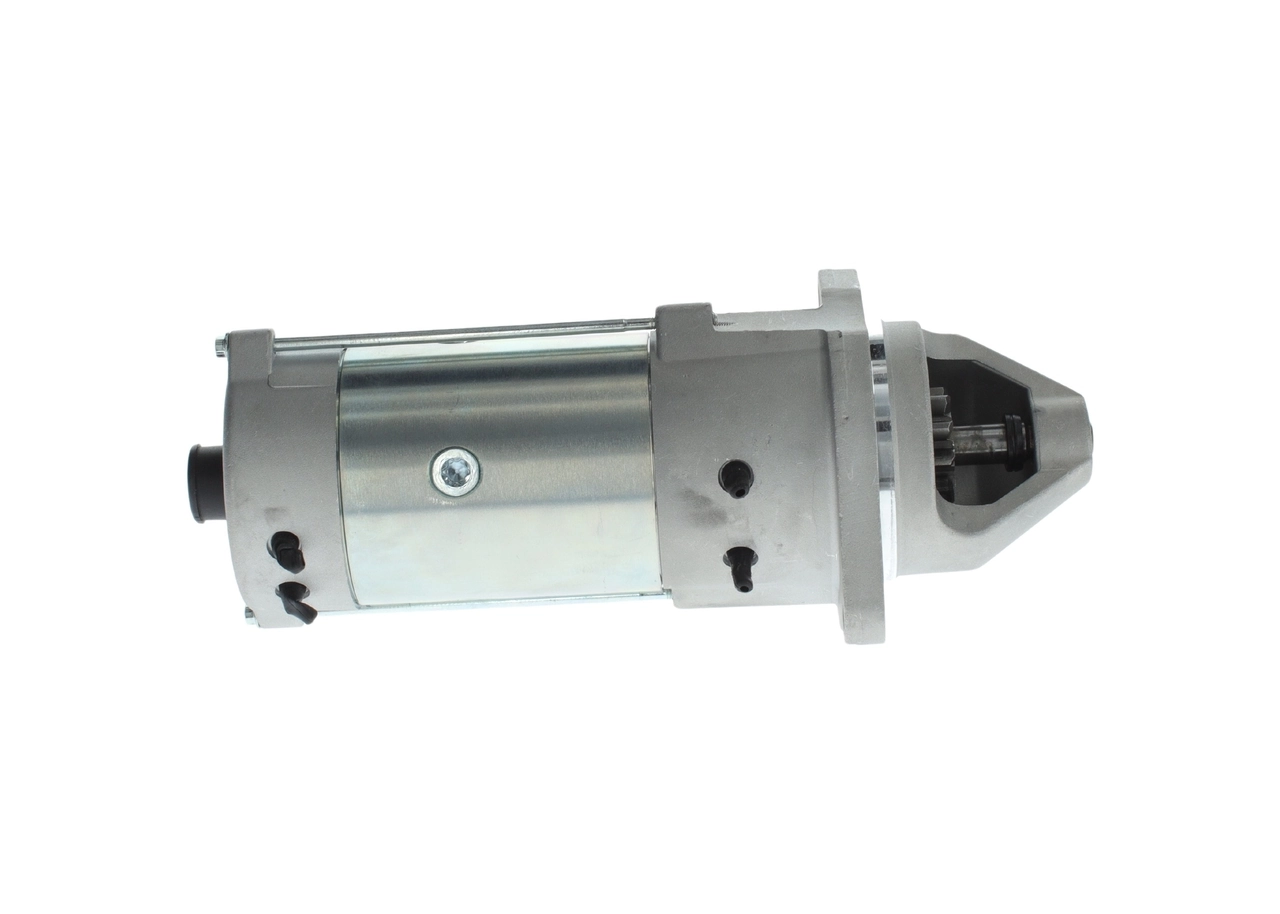

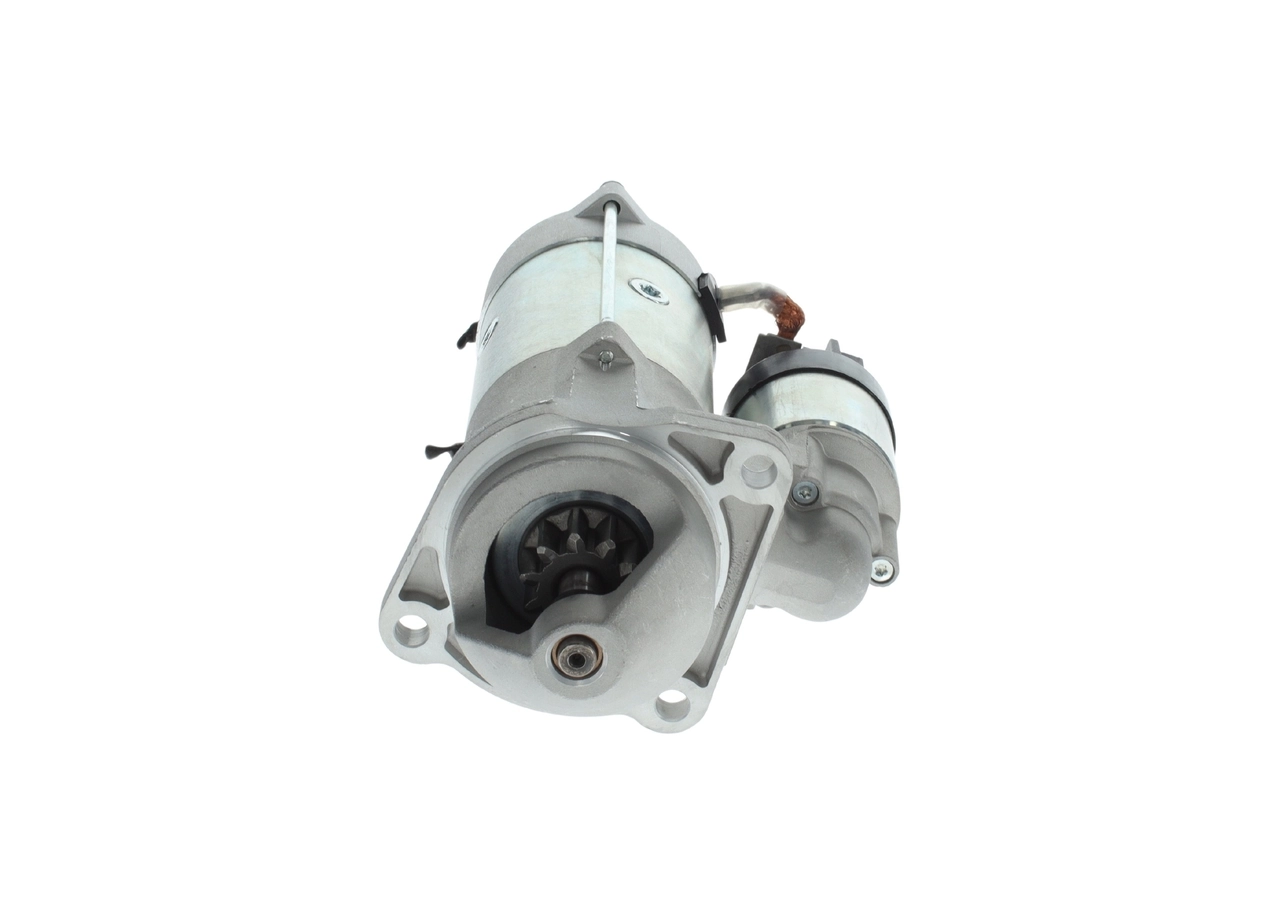

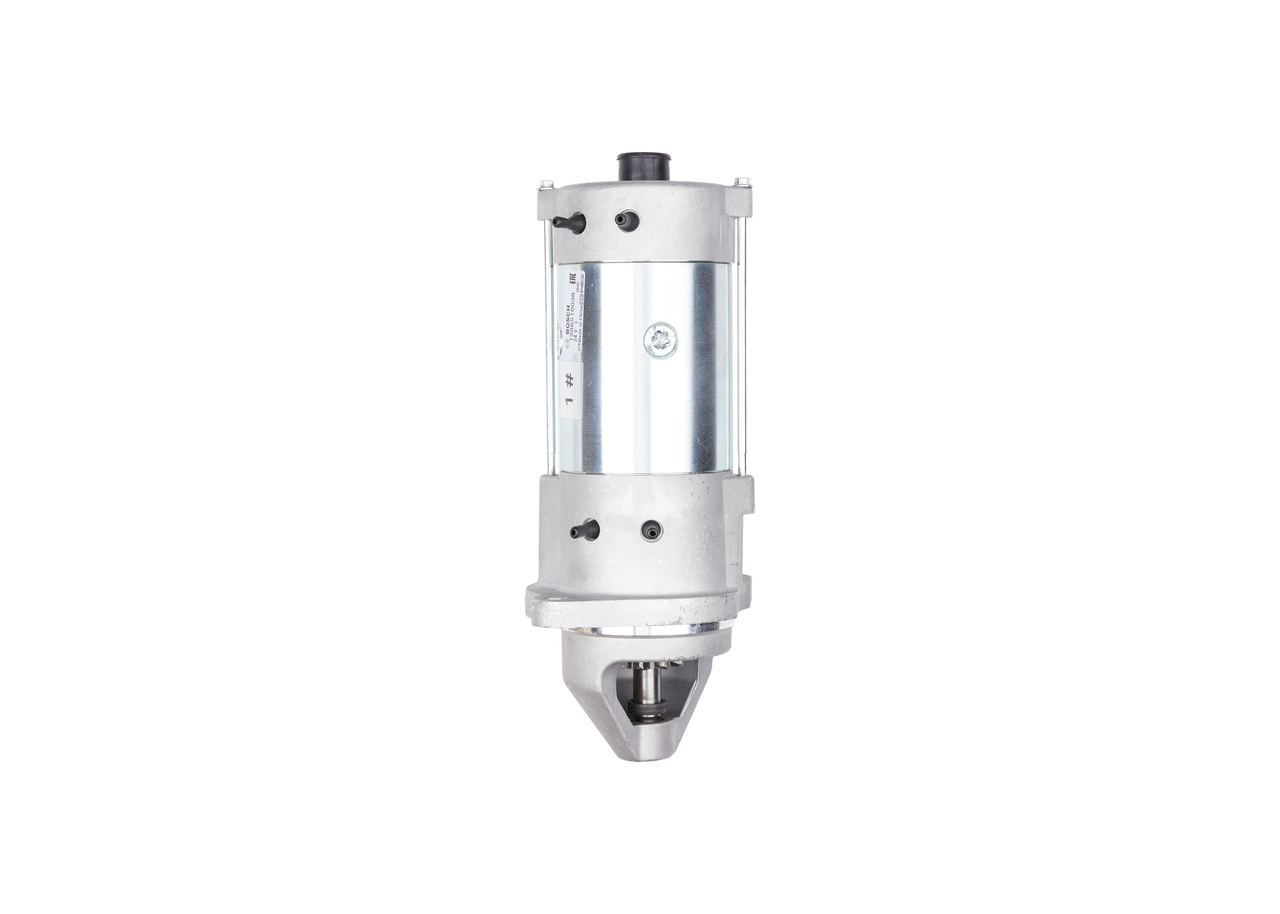

BOSCH 1 986 S10 038 Starter
EAN: 4047026541250
358.08 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Voltage [V]: | 24 |
| Rated Power [kW]: | 4 |
| Number of mounting bores: | 3 |
| Number of threaded holes: | 0 |
| Number of Teeth: | 10 |
| Clamp: | 30,50 |
| Flange Ø [mm]: | 89 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 27 |
| Starter Type: | Self-supporting |
| Bore Ø [mm]: | 11 |
| Bore Ø 2 [mm]: | 11 |
| Bore Ø 3 [mm]: | 11 |
| Length [mm]: | 302 |
| Position/Degree: | rechts |
| Jaw opening angle measurement [Degree]: | 135 |
OEN Number
Similar Spare Parts
| AS-PL: | S0179 |
| AS-PL: | S0201 |
| AS-PL: | S0865(SEG) |
| AS-PL: | S0865S |
| Airstal: | 30-1534 |
| BOSCH: | 0 001 251 006 |
| BOSCH: | 0 986 025 530 |
| BV PSH: | 501.505.103.011 |
| BV PSH: | 501.505.103.012 |
| BV PSH: | 501.505.103.090 |
| BV PSH: | 501.505.103.280 |
| BV PSH: | 501.505.103.310 |
| BV PSH: | 501.505.103.340 |
| BV PSH: | 501.505.103.380 |
| DRI: | 618037104 |
| DT Spare Parts: | 7.61021 |
| ELSTOCK: | 45-4203 |
| HELLA: | 8EA 015 657-121 |
| LUCAS: | LRS02531 |
Compatibility
