BOSCH 0 986 017 030 Starter
EAN: 3165141088076
70.46 EUR
Inc. VAT 21%
Payments methods:

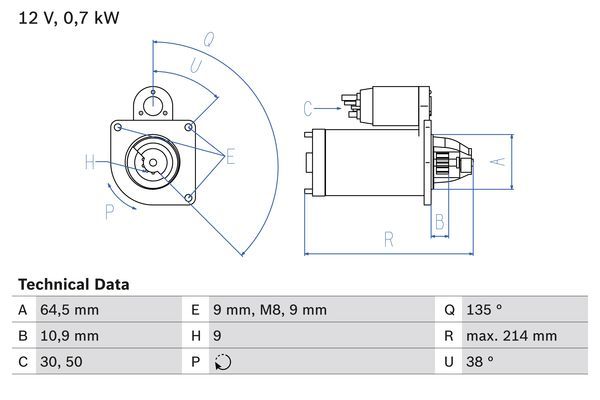

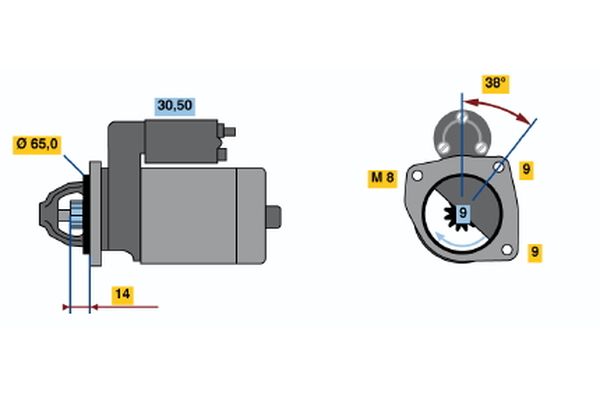

Technical Specifications
| Service exchange part: | |
| Voltage [V]: | 12 |
| Rated Power [kW]: | 0.7 |
| Number of mounting bores: | 2 |
| Number of threaded holes: | 1 |
| Number of Teeth: | 9 |
| Clamp: | 50 |
| Clamp: | 30 |
| Flange Ø [mm]: | 64.5 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 10.9 |
| Starter Type: | Self-supporting |
| Thread Size 1: | M8x1.25 |
| Bore Ø [mm]: | 9 |
| Bore Ø 3 [mm]: | 9 |
| Length [mm]: | 214 |
| Position/Degree: | rechts |
| Mounting Angle [degrees]: | 38 |
| Jaw opening angle measurement [Degree]: | 135 |
| Fastening hole angle measurement [Degree]: | 38 |
OEN Number
| ALFA ROMEO: | 46518059 |
| FIAT: | 46231531 |
| FIAT: | 46429594 |
| FIAT: | 46473785 |
| FIAT: | 46518059 |
| FIAT: | 55196400 |
| FIAT: | 71752055 |
| FIAT: | 7772456 |
| FIAT: | 7772459 |
| FIAT: | 7785449 |
| FIAT: | 7796598 |
| LANCIA: | 46231531 |
| LANCIA: | 46429594 |
| LANCIA: | 46473785 |
| LANCIA: | 46518059 |
| LANCIA: | 7772456 |
| LANCIA: | 7772459 |
| LANCIA: | 7785449 |
| LANCIA: | 7796598 |
| AUTOBIANCHI: | 7772459 |
Similar Spare Parts
| AS-PL: | S3155S |
| Airstal: | 30-0041 |
| BOM-Prestolite: | 20500989 |
| BOSCH: | 1 986 S01 020 |
| DENSO: | DSN961 |
| DRI: | 318072082 |
| ELSTOCK: | 25-2419 |
| ERA: | 220182 |
| ERA: | 220182A |
| FEBI BILSTEIN: | 101582 |
| HELLA: | 8EA 012 526-931 |
| HOFFER: | H5030042 |
| HOFFER: | H5030043 |
| HOFFER: | H5030050 |
| KAMOKA: | 8610030 |
| LUCAS: | LRS02095 |
| MAGNETI MARELLI: | 063101015010 |
| MAGNETI MARELLI: | 063101018010 |
| MAGNETI MARELLI: | 063720796010 |
| MAGNETI MARELLI: | 944280170300 |
| MEAT & DORIA: | 5030042 |
| MEAT & DORIA: | 5030043 |
| MEAT & DORIA: | 5030050 |
| NK: | 4710531 |
| SIDAT: | S12MA0009A2 |
| SIDAT: | S12MA0044A2 |
| SIDAT: | S12VA0044 |
| STELLOX: | 06-10047-SX |
| VALEO: | 201074 |
| VALEO: | 432643 |
| VALEO: | 455553 |
| VEMO: | V24-12-17030 |
| VEMO: | V24-12-80065 |
