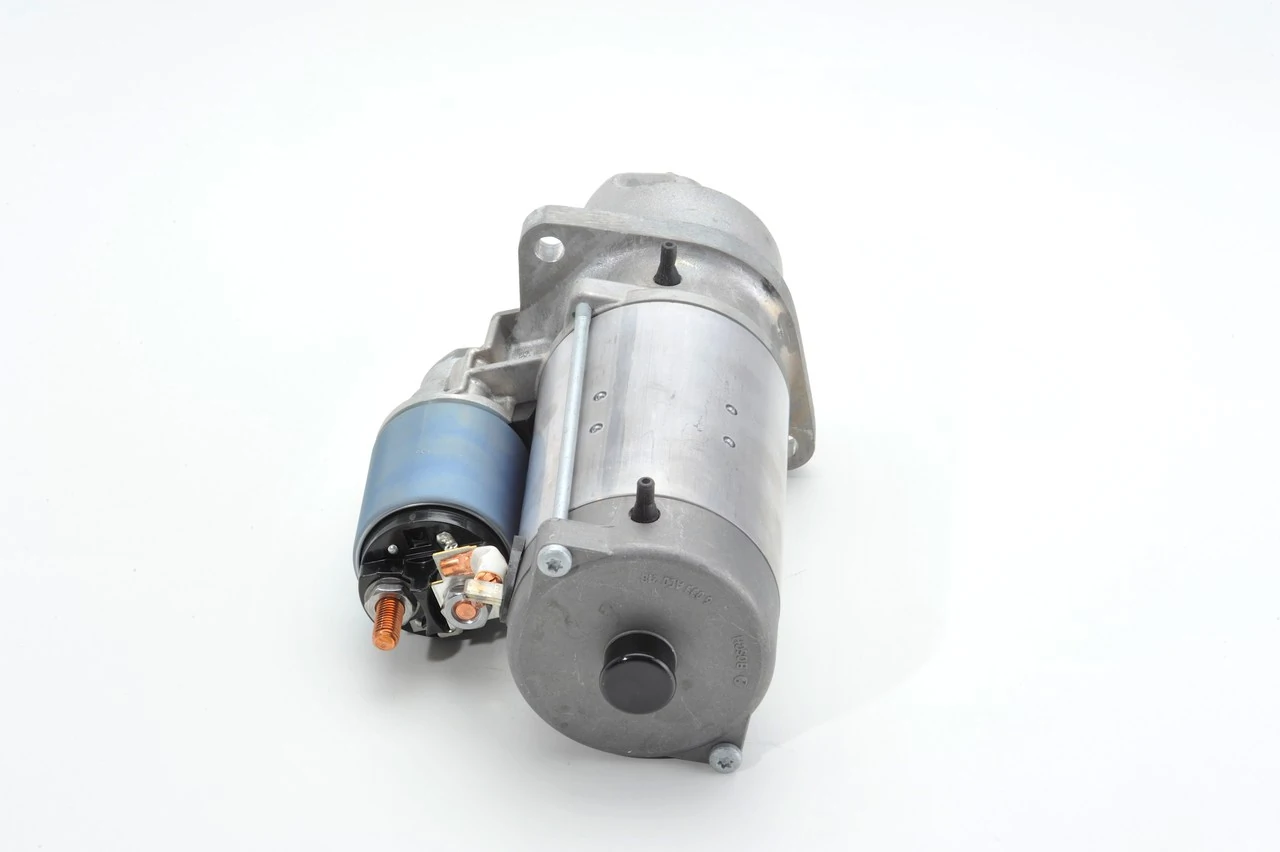

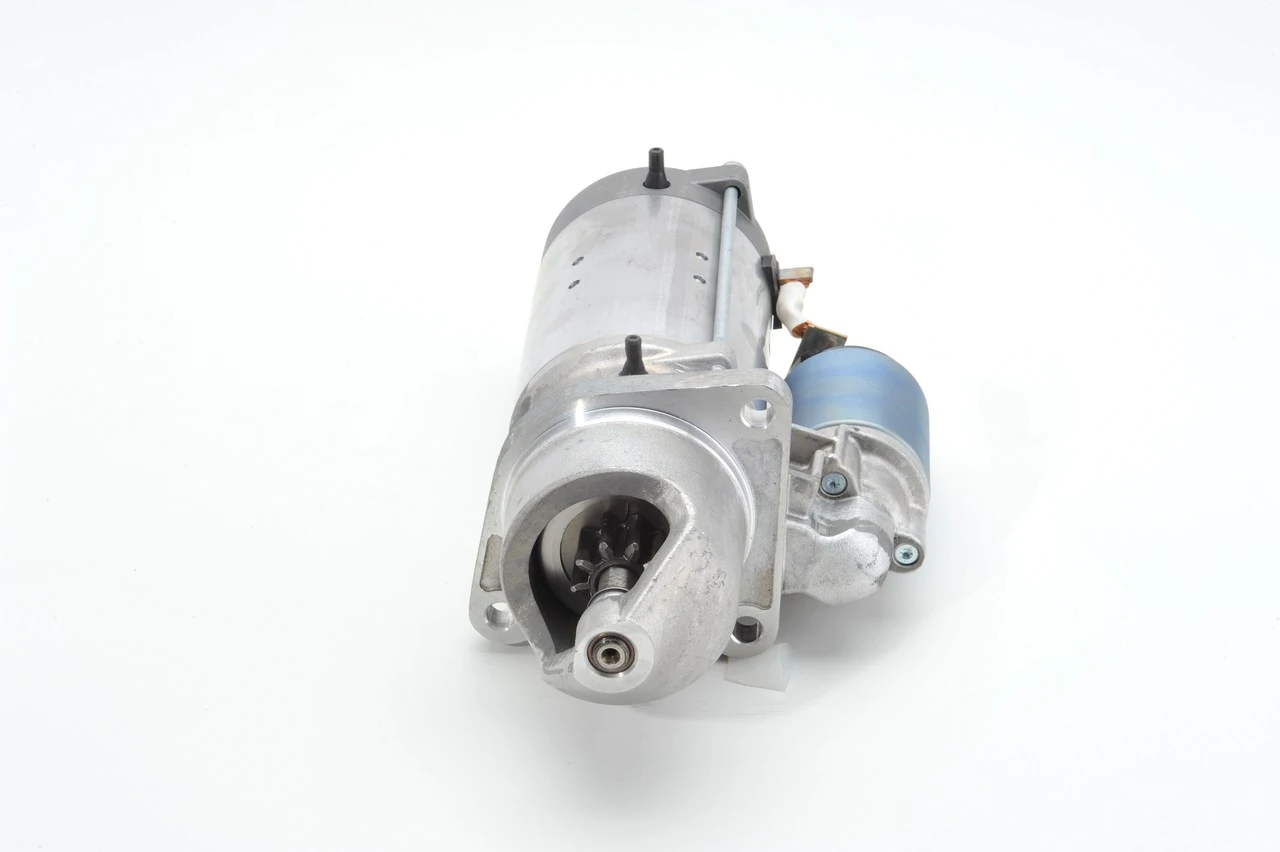

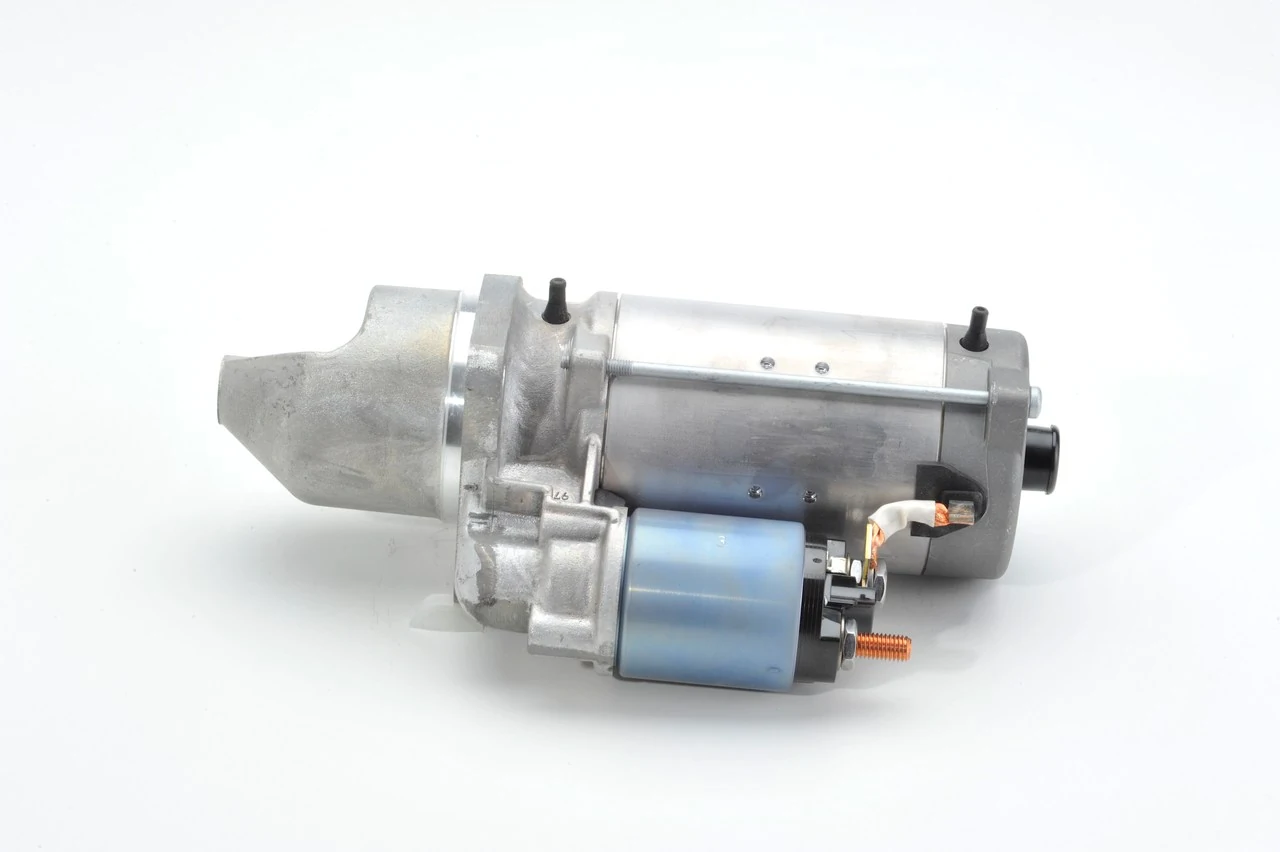

BOSCH 0 001 231 003 Starter
EAN: 3165142290737
438.32 EUR
Inc. VAT 21%
Payments methods:

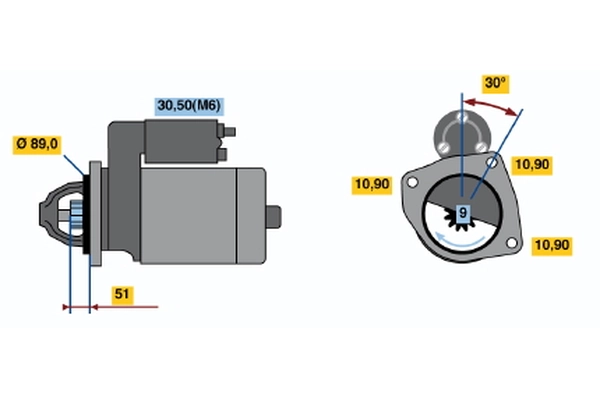

Technical Specifications
| Voltage [V]: | 24 |
| Rated Power [kW]: | 4 |
| Number of mounting bores: | 3 |
| Number of threaded holes: | 0 |
| Number of Teeth: | 9 |
| Clamp: | 50 |
| Clamp: | 30 |
| Flange Diameter [mm]: | 89 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 48 |
| Starter Type: | Self-supporting |
| Bore Diameter [mm]: | 10.5 |
| Bore Diameter 2 [mm]: | 10.5 |
| Bore Ø 3 [mm]: | 10.5 |
| Length [mm]: | 317 |
| Position/Degree: | rechts |
| Mounting Angle [degrees]: | 30 |
| Jaw opening angle measurement [Degree]: | 120 |
| Mounting bore angle measurement [degree]: | 30 |
OEN Number
| DAF: | 1516687R |
| MERCEDES-BENZ: | A 004 151 86 01 |
| MERCEDES-BENZ: | 004 151 86 01 |
Similar Spare Parts
| AS-PL: | S0070 |
| AS-PL: | S0070SR |
| AS-PL: | S0969S |
| AUGER: | 84910 |
| Airstal: | 30-0373 |
| BOM-Prestolite: | 35261450 |
| BOM-Prestolite: | 861036 |
| BOSCH: | 1 986 S10 105 |
| BOSCH: | 0 986 017 990 |
| BV PSH: | 551.504.093.010 |
| BV PSH: | 551.504.093.280 |
| DRI: | 625019094 |
| DT Spare Parts: | 4.63004 |
| DT Spare Parts: | 4.63027 |
| ELSTOCK: | 45-3020 |
| FEBI BILSTEIN: | 48968 |
| HELLA: | 8EA 012 586-411 |
| HOFFER: | H5110020 |
| HOFFER: | H5110020G |
| LUCAS: | LRS02157 |
| MEAT & DORIA: | 5110020 |
| MEAT & DORIA: | 5110020G |
| SIDAT: | S24BH0062 |
| SIDAT: | S24BH0062A2 |
| STELLOX: | 88-02001-SX |
| TRUCKTEC AUTOMOTIVE: | 01.17.053 |
| VALEO: | 203015 |
| VALEO: | 432636 |
| VALEO: | 455529 |
| VEMO: | V31-12-17990 |
