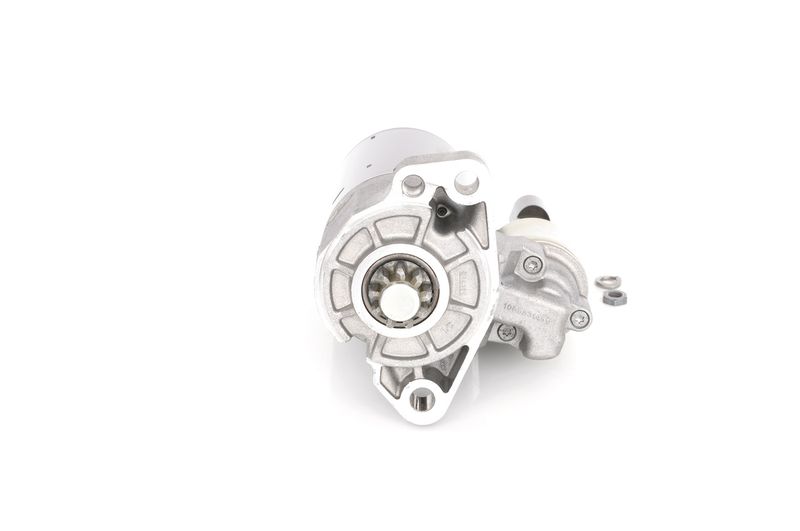

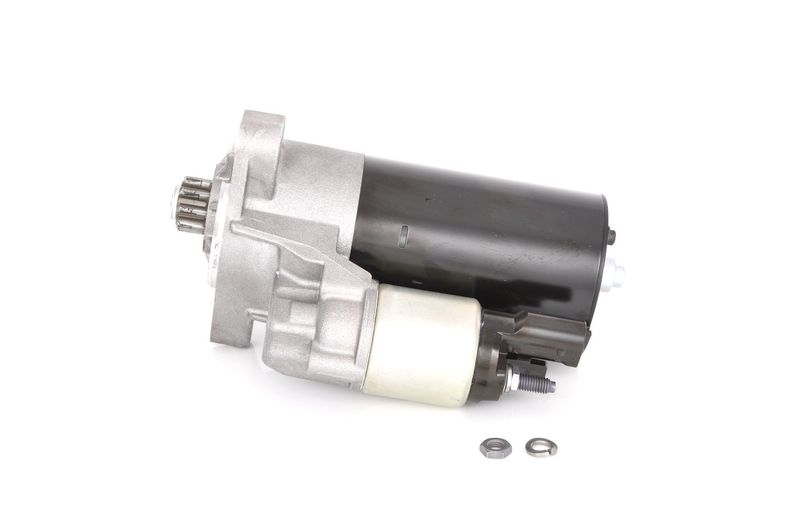

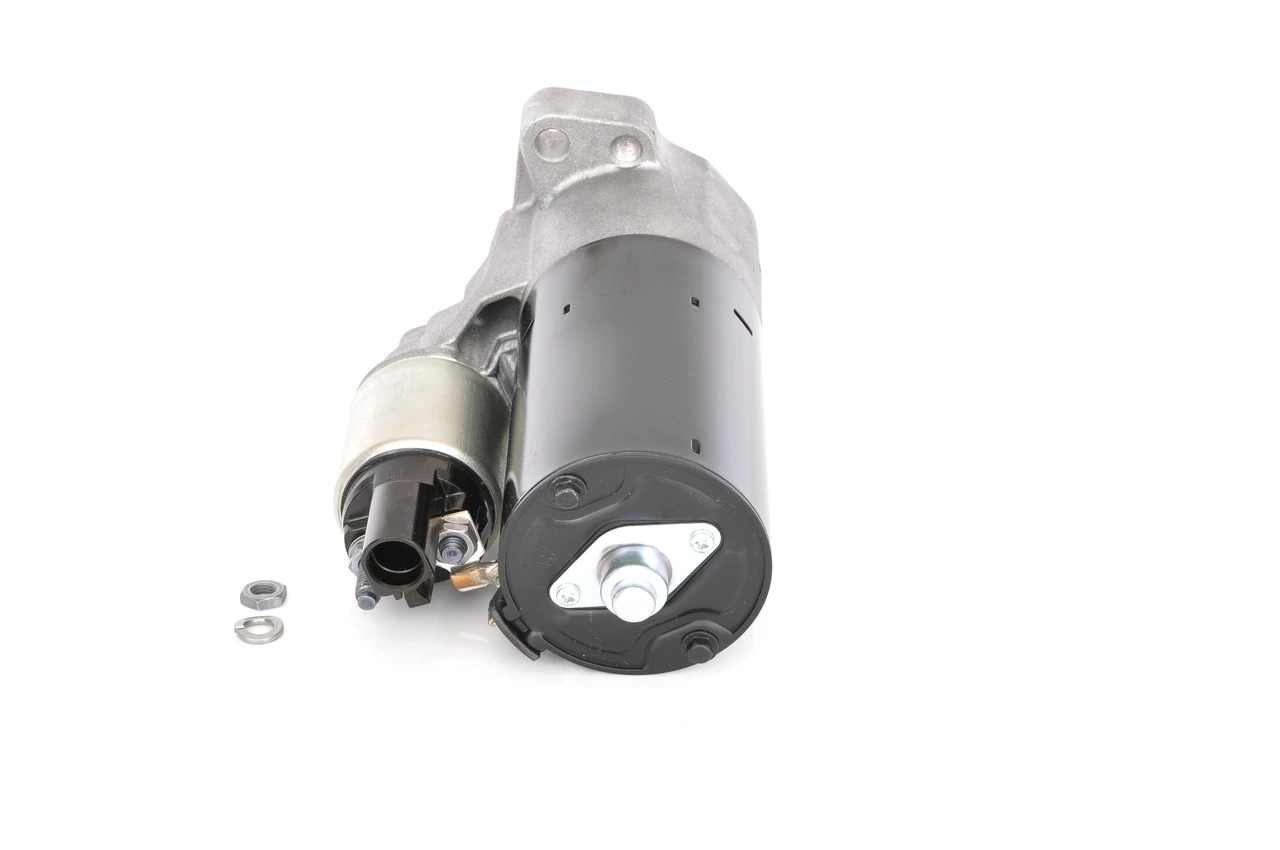

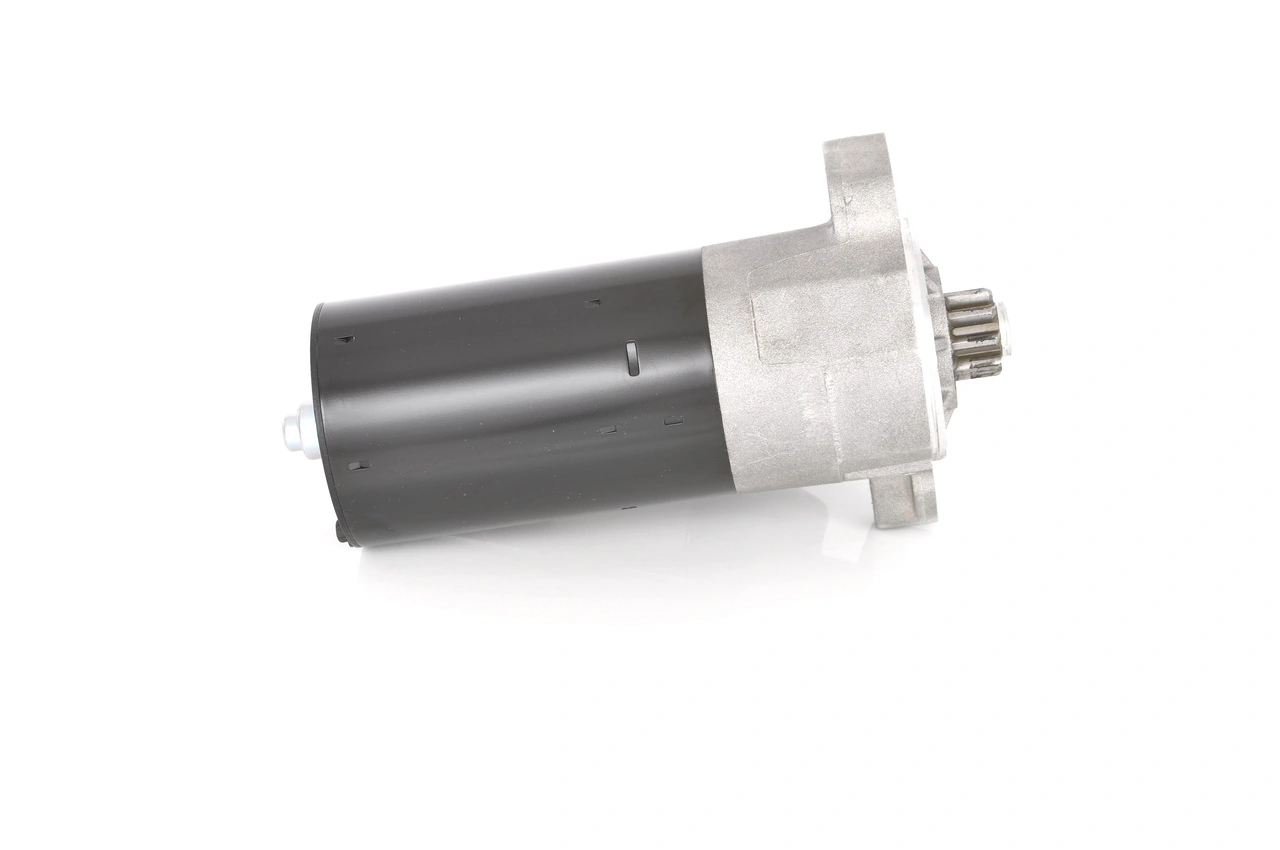

BOSCH 0 001 125 521 Starter
EAN: 4047024020511
242.62 EUR
Inc. VAT 21%
Payments methods:

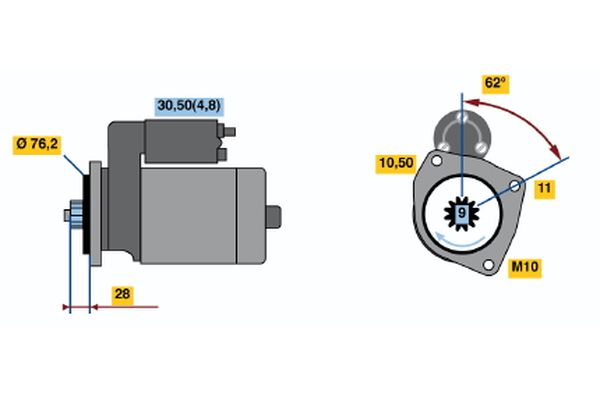

Technical Specifications
| Voltage [V]: | 12 |
| Rated Power [kW]: | 2 |
| Number of mounting bores: | 2 |
| Number of threaded holes: | 1 |
| Number of Teeth: | 9 |
| Clamp: | 50 |
| Clamp: | 30 |
| Flange Ø [mm]: | 76.2 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 25.3 |
| Starter Type: | Floating pinion |
| Thread Size 2: | M10x1.5 |
| Bore Ø [mm]: | 11 |
| Bore Ø 2 [mm]: | 10.5 |
| Length [mm]: | 229 |
| Position/Degree: | rechts |
| Mounting Angle [degrees]: | 62 |
| Fastening hole angle measurement [Degree]: | 62 |
OEN Number
| AUDI: | 059 911 024 C |
| AUDI: | 059 911 024 E |
| AUDI: | 059 911 024 H |
| PORSCHE: | 955 604 108 00 |
| VW: | 056 911 024 J |
| VW: | 059 911 023 J |
| VW: | 059 911 023 S |
| VW: | 059 911 023 SX |
| VW: | 059 911 024 C |
| VW: | 059 911 024 CX |
| VW: | 059 911 024 E |
| VW: | 059 911 024 EX |
| VW: | 059 911 024 H |
| VW: | 059 911 024 HX |
| VW: | 059 911 024 J |
| VW: | 059 911 024 JX |
Similar Spare Parts
| AS-PL: | S0213 |
| AS-PL: | S0213PR |
| AS-PL: | S0213SR |
| AS-PL: | S0270(SEG) |
| AS-PL: | S0316 |
| BOSCH: | 1 986 S00 820 |
| BOSCH: | 0 001 125 519 |
| BOSCH: | 0 986 024 050 |
| BV PSH: | 300.577.093.010 |
| BV PSH: | 300.577.093.281 |
| BV PSH: | 300.577.093.340 |
| DRI: | 311246092 |
| ELSTOCK: | 25-4002 |
| ERA: | 220922A |
| HELLA: | 8EA 011 611-881 |
| HOFFER: | H5010381 |
| HOFFER: | H5010381G |
| LUCAS: | LRS02330 |
| MAGNETI MARELLI: | 063721521010 |
| MAGNETI MARELLI: | 944280803920 |
| MEAT & DORIA: | 5010381 |
| MEAT & DORIA: | 5010381G |
| SIDAT: | S12BH0252 |
| SIDAT: | S12BH0252A2 |
| VALEO: | 445662 |
| VALEO: | 458927 |
| VEMO: | V10-12-25519 |
