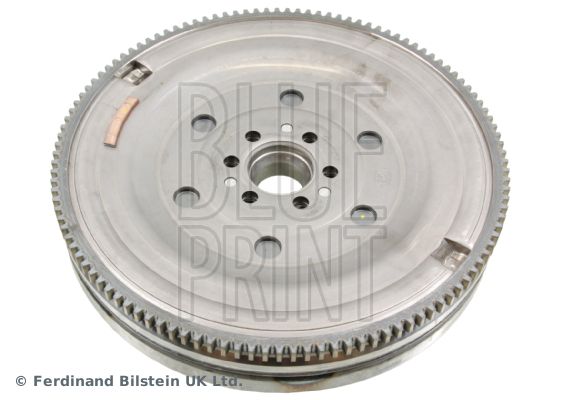

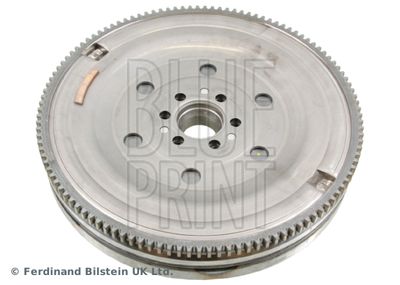

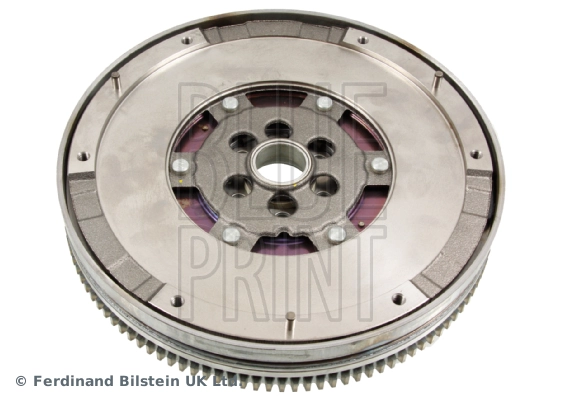

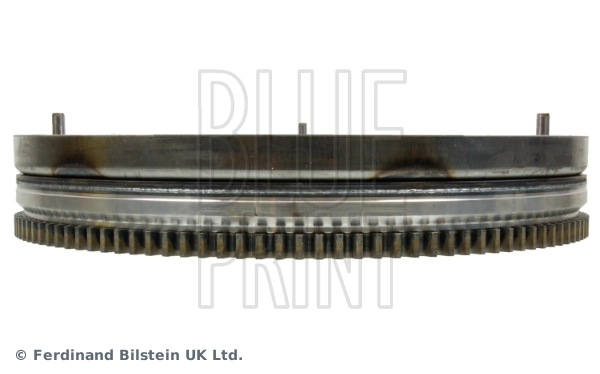

BLUE PRINT ADV183508 Flywheel
EAN: 5057746076603
405.57 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Hub Inner Diameter [mm]: | 33.25 |
| Hub fastening hole diameter [mm]: | 10.5 |
| Hub Outer Diameter [mm]: | 109 |
| Pitch circle diameter, hub [mm]: | 66.1 |
| Number of hub fastening holes: | 6 |
| Pitch circle diameter, clutch pressure plate [mm]: | 260 |
| Inner Diameter Tread [mm]: | 153.8 |
| Clutch Pressure Plate Outer Diameter [mm]: | 243 |
| Number of clutch pressure plate fastening holes: | 6 |
| Number of Teeth: | 117 |
| Weight [kg]: | 11.3 |
| Observe service information: |
OEN Number
| AUDI: | 03G 105 266 AT |
| AUDI: | 03G 105 266 BH |
| AUDI: | 03G 105 266 N |
| AUDI: | 3G 105 266 AT |
| AUDI: | 3G 105 266 BH |
| AUDI: | 3G 105 266 N |
| SEAT: | 03G 105 266 BH |
| SEAT: | 3G 105 266 BH |
| SKODA: | 03G 105 266 BH |
| SKODA: | 3G 105 266 BH |
| VW: | 03G 105 266 AT |
| VW: | 03G 105 266 BH |
| VW: | 03G 105 266 N |
| VW: | 3G 105 266 AT |
| VW: | 3G 105 266 BH |
| VW: | 3G 105 266 N |
Similar Spare Parts
| NEXUS: | F1A503NX |
| Schaeffler LuK: | 415 0244 10 |
| VAICO: | V10-9132 |
