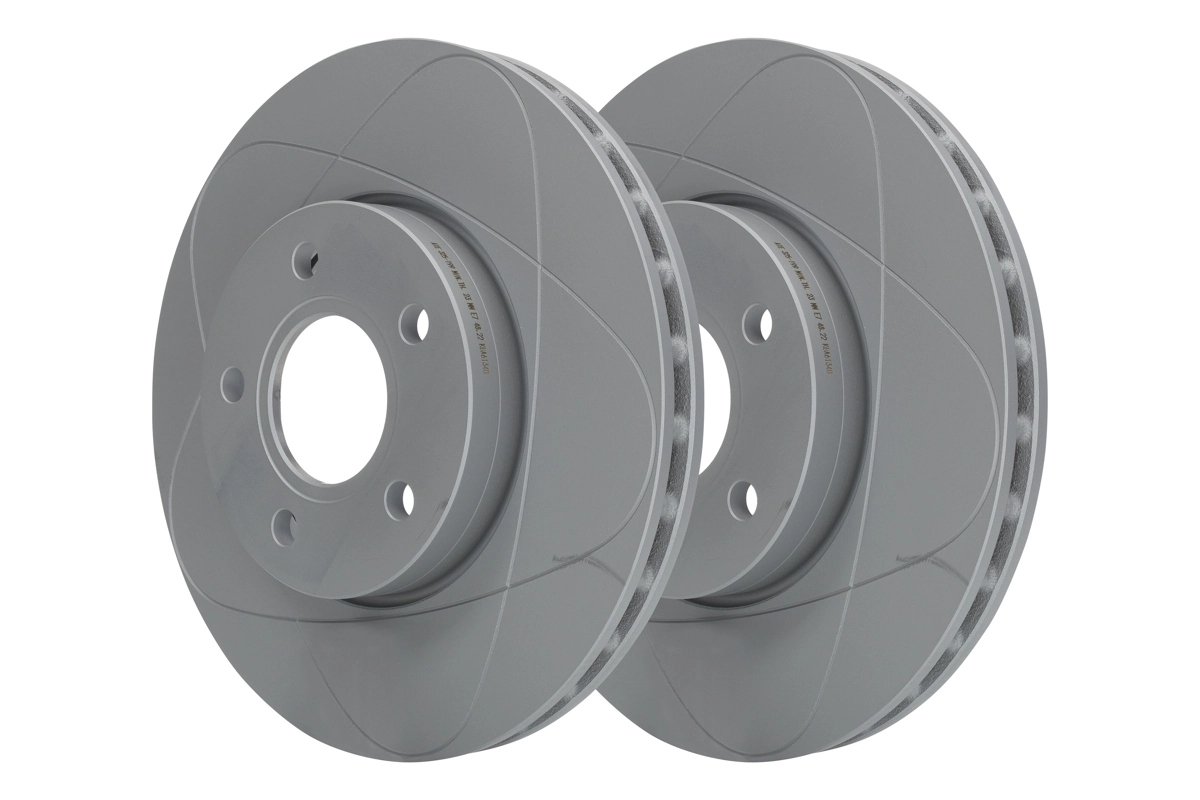

ATE 24.0325-0199.1 Brake Disc
EAN: 4006633418881
75.84 EUR
Inc. VAT 21%
Payments methods:

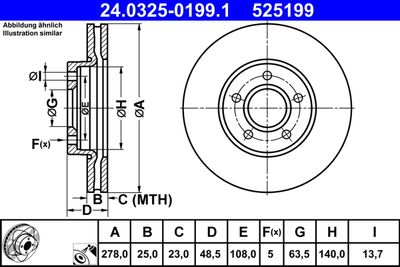

Technical Specifications
| Outer Diameter [mm]: | 278 |
| Brake Disc Thickness [mm]: | 25 |
| Minimum thickness [mm]: | 23 |
| Brake Disc Type: | Vented |
| Machining: | High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 108 |
| Height [mm]: | 48.5 |
| Centering Diameter [mm]: | 63.5 |
| Inner Diameter [mm]: | 140 |
| Bore Ø [mm]: | 13.7 |
| Test Mark: | E1 90R-02C0858/1313 |
| MAPP code available: |
OEN Number
| FORD: | 1686723 |
| FORD: | 1790221 |
| FORD: | AV61-1125-DA |
| FORD: | AV61-1125-DB |
Similar Spare Parts
| A.B.S.: | 18339 |
| ALTE AUTOMOTIVE: | 127947FCAL |
| ASHIKA: | 60-00-0303C |
| BLUE PRINT: | ADF124311 |
| BOSCH: | 0 986 479 173 |
| BREMBO: | 09.A905.10 |
| BREMBO: | 09.A905.11 |
| BREMBO: | 09.A905.1X |
| BREMBO: | 09.A905.75 |
| CHAMPION: | 562752CH |
| DELPHI: | BG3868C |
| DENCKERMANN: | B130652 |
| FEBI BILSTEIN: | 24565 |
| FERODO: | DDF2062C |
| FTE: | 9072171 |
| HELLA: | 8DD 355 129-361 |
| HERTH+BUSS JAKOPARTS: | J3300817 |
| JAPANPARTS: | DI-0303C |
| JAPKO: | 600303C |
| LPR: | F1028VR |
| MAGNETI MARELLI: | 360406107100 |
| MAGNETI MARELLI: | 361302040588 |
| MAXGEAR: | 19-2742 |
| MAXGEAR: | 19-2742SPORT |
| METZGER AUTOTEILE: | 6110668 |
| MEYLE: | 715 521 0034 |
| MEYLE: | 715 521 0034/PD |
| NK: | 202582 |
| NK: | 312582 |
| OPTIMAL: | BS-9158 |
| OPTIMAL: | BS-9158C |
| QUARO: | QD3121 |
| QUARO: | QD3121HC |
| STELLOX: | 6021-0137-SX |
| SWAG: | 50 92 4565 |
| TEXTAR: | 92237703 |
| TOMEX Brakes: | TX 73-02 |
| TOPRAN: | 304 728 |
| TRISCAN: | 8120 10179C |
| TRW: | DF6138 |
| VALEO: | 197461 |
| VALEO: | 673017 |
| ZIMMERMANN: | 250.1352.20 |
| ZIMMERMANN: | 250.1352.52 |
| ZIMMERMANN: | 250.1371.20 |
| ZIMMERMANN: | 250.1371.52 |
Compatibility
