ATE 24.0325-0145.1 Brake Disc
EAN: 4006633128186
72.41 EUR
Inc. VAT 21%
Payments methods:

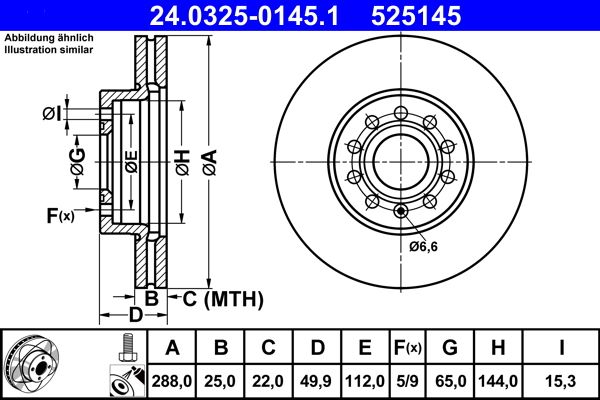

Technical Specifications
| Supplementary Article/Info 2: | with bolts/screws |
| Outer Diameter [mm]: | 288 |
| Brake Disc Thickness [mm]: | 25 |
| Minimum thickness [mm]: | 22 |
| Brake Disc Type: | Vented |
| Machining: | High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| No. of holes 2: | 9 |
| Height [mm]: | 49.9 |
| Centering Diameter [mm]: | 65 |
| Inner Diameter [mm]: | 144 |
| Bolt Hole Circle Ø [mm]: | 112 |
| Bore Ø [mm]: | 15.3 |
| Test Mark: | E1 90R-02C0858/1210 |
| MAPP code available: |
OEN Number
| SEAT: | 1K0 615 301 T |
| SEAT: | JZW 615 301 J |
| SEAT: | 5Q0 615 301 H |
| SKODA: | 1K0 615 301 T |
| SKODA: | JZW 615 301 J |
| SKODA: | 5Q0 615 301 H |
| VAG: | 1K0 615 301 T |
| VAG: | 1K0 615 301 K |
| VAG: | JZW 615 301 J |
| VAG: | 5Q0 615 301 H |
Similar Spare Parts
| A.B.S.: | 17521 |
| ALTE AUTOMOTIVE: | 127931FCAL |
| ASHIKA: | 60-00-0906C |
| AUTOMEGA: | 120016010 |
| BLUE PRINT: | ADV184315 |
| BOSCH: | 0 986 479 088 |
| BOSCH: | 0 986 479 939 |
| BREMBO: | 09.9145.11 |
| BREMBO: | 09.9145.14 |
| BREMBO: | 09.9145.1S |
| BREMBO: | 09.9145.1X |
| BREMBO: | 09.9145.75 |
| CHAMPION: | 562235CH |
| CIFAM: | 800-734C |
| DELPHI: | BG3833C |
| DELPHI: | BG3883T |
| DENCKERMANN: | B130258 |
| DENCKERMANN: | B130258P |
| FEBI BILSTEIN: | 22902 |
| FERODO: | DDF1218 |
| FERODO: | DDF1218C |
| FTE: | 9071000 |
| FTE: | 9082768 |
| HELLA: | 8DD 355 109-581 |
| HELLA: | 8DD 355 128-001 |
| HERTH+BUSS JAKOPARTS: | J3300807 |
| JAPANPARTS: | DI-0906C |
| JAPKO: | 600906C |
| JURID: | 562235JC |
| KRAFT AUTOMOTIVE: | 6040450 |
| MAGNETI MARELLI: | 360406050500 |
| MAGNETI MARELLI: | 360406050502 |
| MAGNETI MARELLI: | 360406050505 |
| MAGNETI MARELLI: | 361302040158 |
| MAGNETI MARELLI: | 361302040693 |
| MASTER-SPORT GERMANY: | 24012501451-PCS-MS |
| MASTER-SPORT GERMANY: | 24012501451-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012501451-SET-MS |
| MASTER-SPORT GERMANY: | 24012501451-SET-MSP |
| MASTER-SPORT GERMANY: | 24012501451PR-SET-MS |
| MASTER-SPORT GERMANY: | 24012501451PR-SET-MSP |
| MASTER-SPORT GERMANY: | 24012501451SE-SET-MS |
| MASTER-SPORT GERMANY: | 24012501451SE-SET-MSP |
| MAXGEAR: | 19-1059 |
| MAXGEAR: | 19-1059MAX |
| MAXGEAR: | 19-1059SPORT |
| METELLI: | 23-0734C |
| METZGER AUTOTEILE: | 6110021 |
| MEYLE: | 115 521 1045 |
| MEYLE: | 183 521 1045/PD |
| NK: | 204788 |
| NK: | 314788 |
| OPTIMAL: | BS-8022 |
| OPTIMAL: | BS-8022HC |
| QUARO: | QD1754 |
| QUARO: | QD1754HC |
| SKF: | VKBD 80005 V2 |
| STELLOX: | 6020-4788V-SX |
| STELLOX: | 6020-4788VK-SX |
| SWAG: | 32 92 2902 |
| TEXTAR: | 92120800 |
| TEXTAR: | 92120805 |
| TOMEX Brakes: | TX 71-31 |
| TOPRAN: | 110 075 |
| TRW: | DF4295 |
| VALEO: | 197325 |
| ZIMMERMANN: | 600.3221.20 |
| ZIMMERMANN: | 600.3221.52 |
| ZIMMERMANN: | 600.3221.53 |
