ATE 24.0322-0210.1 Brake Disc
EAN: 4006633128148
62.50 EUR
Inc. VAT 21%
Payments methods:

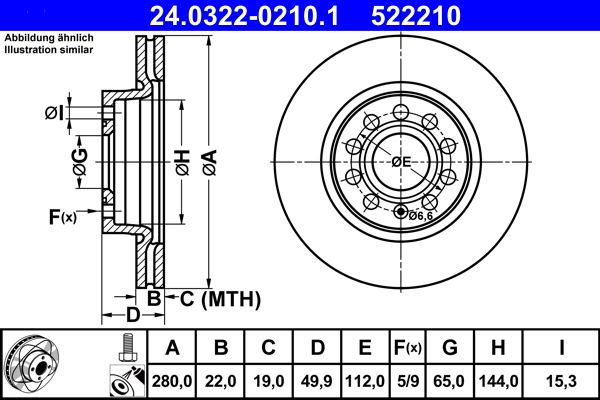

Technical Specifications
| Outer Diameter [mm]: | 280 |
| Brake Disc Thickness [mm]: | 22 |
| Minimum thickness [mm]: | 19 |
| Brake Disc Type: | Vented |
| Machining: | High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| No. of holes 2: | 9 |
| Height [mm]: | 49.9 |
| Centering Diameter [mm]: | 65 |
| Inner Diameter [mm]: | 144 |
| Bolt Hole Circle Ø [mm]: | 112 |
| Bore Ø [mm]: | 15.3 |
| Supplementary Article/Info 2: | with bolts/screws |
| Test Mark: | E1 90R-02C0858/1315 |
| MAPP code available: |
OEN Number
| SEAT: | 1K0 615 301 S |
| SEAT: | 1K0 615 301 AC |
| SEAT: | 1K0 615 301 AK |
| SEAT: | 1K0 615 301 AS |
| SKODA: | 1K0 615 301 S |
| SKODA: | 1K0 615 301 AC |
| SKODA: | 1K0 615 301 AK |
| SKODA: | 1K0 615 301 AS |
| VAG: | 1K0 615 301 S |
| VAG: | 1K0 615 301 AC |
| VAG: | 1K0 615 301 AK |
| VAG: | 1K0 615 301 AS |
Similar Spare Parts
| A.B.S.: | 17522 |
| ALTE AUTOMOTIVE: | 127939FCAL |
| ASHIKA: | 60-00-0934 |
| ASHIKA: | 60-00-0934C |
| AUTOMEGA: | 120015910 |
| BLUE PRINT: | ADV184317 |
| BOSCH: | 0 986 479 098 |
| BOSCH: | 0 986 479 940 |
| BREMBO: | 09.9167.10 |
| BREMBO: | 09.9167.11 |
| BREMBO: | 09.9167.1S |
| BREMBO: | 09.9167.1X |
| BREMBO: | 09.9167.75 |
| CHAMPION: | 562237CH |
| CIFAM: | 800-733C |
| DELPHI: | BG3832C |
| DENCKERMANN: | B130266 |
| DENCKERMANN: | B130266P |
| FEBI BILSTEIN: | 22904 |
| FERODO: | DDF1223 |
| FERODO: | DDF1223C |
| FTE: | 9072010 |
| HELLA: | 8DD 355 109-561 |
| HELLA: | 8DD 355 127-991 |
| HERTH+BUSS JAKOPARTS: | J3300815 |
| JAPANPARTS: | DI-0934 |
| JAPANPARTS: | DI-0934C |
| JAPKO: | 600934 |
| JAPKO: | 600934C |
| JURID: | 562237JC |
| KRAFT AUTOMOTIVE: | 6046560 |
| MAGNETI MARELLI: | 360406002000 |
| MAGNETI MARELLI: | 360406002002 |
| MAGNETI MARELLI: | 360406002005 |
| MAGNETI MARELLI: | 361302040152 |
| MASTER-SPORT GERMANY: | 24012202101-PCS-MS |
| MASTER-SPORT GERMANY: | 24012202101-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012202101-SET-MS |
| MASTER-SPORT GERMANY: | 24012202101-SET-MSP |
| MASTER-SPORT GERMANY: | 24012202101PR-SET-MS |
| MASTER-SPORT GERMANY: | 24012202101PR-SET-MSP |
| MASTER-SPORT GERMANY: | 24012202101SE-SET-MS |
| MASTER-SPORT GERMANY: | 24012202101SE-SET-MSP |
| MAXGEAR: | 19-0820 |
| MAXGEAR: | 19-0820MAX |
| MAXGEAR: | 19-0820SPORT |
| METELLI: | 23-0733C |
| METZGER AUTOTEILE: | 6110161 |
| MEYLE: | 115 521 1044 |
| MEYLE: | 183 521 1044/PD |
| NK: | 204787 |
| NK: | 314787 |
| NK: | 344787 |
| OPTIMAL: | BS-8020 |
| OPTIMAL: | BS-8020HC |
| QUARO: | QD7442 |
| QUARO: | QD7442HC |
| SKF: | VKBD 80012 V2 |
| STELLOX: | 6020-4787V-SX |
| STELLOX: | 6020-4787VK-SX |
| SWAG: | 32 92 2904 |
| TEXTAR: | 92120700 |
| TEXTAR: | 92120705 |
| TOMEX Brakes: | TX 70-30 |
| TOPRAN: | 110 074 |
| TRW: | DF4294 |
| VAICO: | V10-80069 |
| VALEO: | 186754 |
| VALEO: | 672646 |
| ZIMMERMANN: | 600.3233.20 |
| ZIMMERMANN: | 600.3233.52 |
