ATE 24.0322-0161.1 Brake Disc
EAN: 4006633091794
61.19 EUR
Inc. VAT 21%
Payments methods:

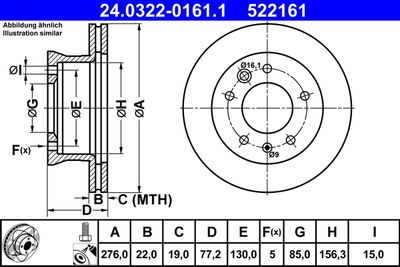

Technical Specifications
| Outer Diameter [mm]: | 276 |
| Brake Disc Thickness [mm]: | 22 |
| Minimum thickness [mm]: | 19 |
| Brake Disc Type: | Vented |
| Number of Holes: | 5 |
| Machining: | Alloyed/High-carbon |
| Surface: | Coated |
| Bolt Hole Circle Ø [mm]: | 130 |
| Height [mm]: | 77.2 |
| Centering Diameter [mm]: | 85 |
| Inner Diameter [mm]: | 156.3 |
| Bore Ø [mm]: | 15 |
| Supplementary Article/Info 2: | with bolts/screws |
| Test Mark: | E1 90R-02C0858/1315 |
| MAPP code available: |
OEN Number
| MERCEDES-BENZ: | 902 421 07 12 |
| MERCEDES-BENZ: | 902 421 06 12 |
| MERCEDES-BENZ: | 901 421 03 12 |
| MERCEDES-BENZ: | 902 421 03 12 |
| MERCEDES-BENZ: | 902 421 04 12 |
| MERCEDES-BENZ: | 902 421 09 12 |
| MERCEDES-BENZ: | A 902 421 04 12 |
| MERCEDES-BENZ: | A 902 421 06 12 |
| MERCEDES-BENZ: | A 902 421 07 12 |
| MERCEDES-BENZ: | A 902 421 09 12 |
| MERCEDES-BENZ: | A 901 421 03 12 |
| MERCEDES-BENZ: | A 902 421 03 12 |
| VAG: | 2D0 615 301 A |
| VAG: | 2D0 615 301 B |
| VAG: | 2D0 615 301 C |
| VAG: | 2D0 615 301 D |
Similar Spare Parts
| A.B.S.: | 16453 |
| A.B.S.: | 17346 |
| AIC: | 51637 |
| ALTE AUTOMOTIVE: | 128302FCAL |
| ASHIKA: | 60-00-0561C |
| AUTOMEGA: | 120033510 |
| BLUE PRINT: | ADU174360 |
| BOSCH: | 0 986 478 849 |
| BREMBO: | 09.7314.14 |
| BREMBO: | 09.7314.24 |
| BREMBO: | 09.9618.14 |
| BREMBO: | 09.9618.24 |
| CHAMPION: | 569122CH |
| CIFAM: | 800-418 |
| DELPHI: | BG3236 |
| DENCKERMANN: | B130039 |
| DT Spare Parts: | 4.63998 |
| FEBI BILSTEIN: | 07517 |
| FEBI BILSTEIN: | 22857 |
| FERODO: | FCR106A |
| FERODO: | FCR153A |
| FERODO: | FCR228A |
| FTE: | 9072023 |
| HELLA: | 8DD 355 111-001 |
| HELLA: | 8DD 355 128-251 |
| JAPANPARTS: | DI-0561C |
| JAPKO: | 600561C |
| JURID: | 569122J |
| KRAFT AUTOMOTIVE: | 6041410 |
| MAGNETI MARELLI: | 353612837240 |
| MAGNETI MARELLI: | 360406032400 |
| MAGNETI MARELLI: | 360406032500 |
| MAGNETI MARELLI: | 361302040216 |
| MAGNETI MARELLI: | 361302040384 |
| MASTER-SPORT GERMANY: | 24012201611-PCS-MS |
| MASTER-SPORT GERMANY: | 24012201611-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012201611-SET-MS |
| MASTER-SPORT GERMANY: | 24012201611-SET-MSP |
| MAXGEAR: | 19-0730 |
| MAXGEAR: | 19-0730MAX |
| MAXGEAR: | 19-0730SPORT |
| METELLI: | 23-0418 |
| METZGER AUTOTEILE: | 6110142 |
| MEYLE: | 015 521 2032 |
| MEYLE: | 083 521 2032/PD |
| NK: | 203377 |
| NK: | 203397 |
| NK: | 313397 |
| OPTIMAL: | BS-7290 |
| OPTIMAL: | BS-7290HC |
| PE Automotive: | 016.291-00A |
| PE Automotive: | 766.002-00A |
| QUARO: | QD3416 |
| SKF: | VKBD 80174 V2 |
| SWAG: | 10 90 7517 |
| TEXTAR: | 92105400 |
| TEXTAR: | 92131500 |
| TEXTAR: | 92131503 |
| TOMEX Brakes: | TX 70-07 |
| TOPRAN: | 107 687 |
| TRUCKTEC AUTOMOTIVE: | 02.35.025 |
| TRW: | DF2790 |
| TRW: | DF4321 |
| VAICO: | V10-80013 |
| VALEO: | 186774 |
| VALEO: | 187041 |
| ZIMMERMANN: | 400.6470.20 |
Compatibility
