ATE 24.0320-0142.1 Brake Disc

EAN: 4006633276894
Ready for dispatch: 19 June, 2026
42.61 EUR
Inc. VAT 0%
Payments methods:

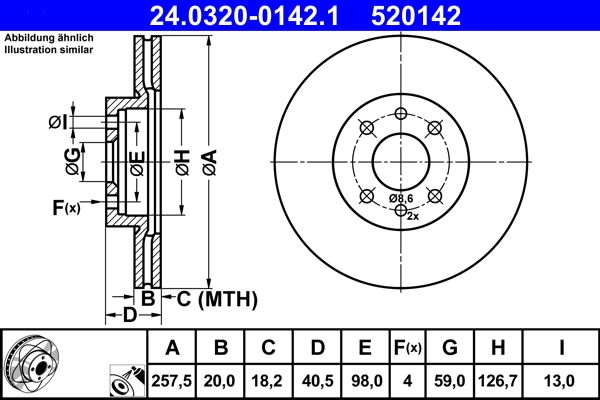

Technical Specifications
Outer Diameter [mm]: 257.5
Brake Disc Thickness [mm]: 20
Minimum thickness [mm]: 18.2
Brake Disc Type: Vented
Machining: Alloyed/High-carbon
Surface: Coated
Number of Holes: 4
MAPP code available:
Bolt Hole Circle Ø [mm]: 98
Height [mm]: 40.5
Centering Diameter [mm]: 59
Inner Diameter [mm]: 126.7
Bore Ø [mm]: 13
OEN Number
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
FIAT:
Similar Spare Parts
4U Autoparts: 52140FT
4X4 ESTANFI: EST-60-00-0230C
A.B.S.: 16046
A.Z. Meisterteile: AZMT-44-024-1462
ABTEX: BD341V
AKRON-MALÒ: 1110167
ALTE AUTOMOTIVE: 127929FCAL
ANDEL: AND0140
AP: 24499 E
AP: 24499 V
AP: X 24499
AP XENERGY: X602003
APlus: 61263AP
ASAM AUTOMOTIVE: 55538
ASHIKA: 60-00-0230
ASHIKA: 60-00-0230C
AYD OE - Excellence: 10-50152
BENDIX Braking: BDS1100
BLUE PRINT: ADL144322
BORG & BECK: BBD4055
BOSCH: 0 986 478 515
BOSCH: 0 986 479 W68
BRECO: BS 8142
BRECO: BV 8142
BREMBO: 09.5870.11
BREMBO: 09.5870.14
BREMBO: 09.5870.75
BREMBO: 09.5870.10
BREMSI: CD6521V
BSG: BSG 25-210-001
Brake ENGINEERING: DI955095
CIFAM: 800-231C
DACO Germany: 609955
DAVID VASCO: T2686
DELPHI: BG2830
DELPHI: BG2830T
DENCKERMANN: B130029
DON: PCD11182
Dr!ve+: DP1010.11.0728
EQUAL QUALITY: DF1017
EQUAL QUALITY: DF1017C
EQUAL QUALITY: DF1042
EQUAL QUALITY: DF1042C
EUROBRAKE: 5815202331
EUROBRAKE: 5815209921
EUROBRAKE: 5815312331
EUROBRAKE: 5815319921
FAST: FT31016
FEBI BILSTEIN: 10617
FENOX: TB217014
FERRON: TOP00820074
FI.BA: FBD106
FREMAX: BD-0178
FREMAX: BD-5056
FRIGAIR: DC04.109
FTE: 9072589
FTE: BS3593
GH: GH-402318
GH: GH-402352
GIRLING: 6026861
GUTTMANN: BD3028
HELLA: 8DD 355 103-871
HELLA: 8DD 355 124-621
HELLA: 8DD 355 127-151
HELLA PAGID: 8DD 355 103-871
HELLA PAGID: 8DD 355 124-621
HELLA PAGID: 8DD 355 127-151
JAPANPARTS: DI-0230
JAPANPARTS: DI-0230C
JAPANPARTS: DI0230JM
JAPKO: 600230
JAPKO: 600230C
JPN: 30H9111-JPN
JURATEK: FIV119
JURID: 561861JC
JURID: 561861JC-1
KRAFT AUTOMOTIVE: 6043070
KRAFTVOLL GERMANY: 07040015
MAGNETI MARELLI: 353611519240
MAGNETI MARELLI: 360406021900
MAGNETI MARELLI: 360406021905
MAGNETI MARELLI: 360704018400
MAGNETI MARELLI: 361302040234
MAGNETI MARELLI: 361302040682
MASTER-SPORT GERMANY: 24012001421-PCS-MS
MASTER-SPORT GERMANY: 24012001421-SET-MS
MASTER-SPORT GERMANY: 24012001421-SET-MSP
MASTER-SPORT GERMANY: 24012001421-PCS-MSP
MAXGEAR: 19-0703
MAXGEAR: 19-0703MAX
MAXGEAR: 19-0703SPORT
MAXTECH: 877211
METELLI: 23-0231C
METZGER: 6110091
MEYLE: 215 521 0008
MINTEX: MDC615
NECTO: WN752
NK: 202331
NK: 209921
NK: 312331
NK: 319921
OPTIMAL: BS-1890
OPTIMAL: BS-1890C
Omnicraft: 2133998
PAGID: 50915
PAGID: 50915NC
PEMEBLA: JAPDI-0230
PEMEBLA: JAPDI-0230C
PEMEBLA: BNXBDS1100
PILENGA: V014
PROFIT: 5010-0521
ProfiPower: 3B1060
QUARO: QD9833
RAICAM: RD00195
RAP BRAKES: R-D0764
RED-LINE: 26FT008
RIDEX: 82B2835
ROTINGER: RT 2531
ROTINGER: RT 2531-GL
ROTINGER: RT 2531-GL T3
ROTINGER: RT 2531-GL T5
ROTINGER: RT 2531-GL T6
ROTINGER: RT 2531-GL T9
SB: BR41102T
SIGMAUTO: DBA521V
SRLine: S71-0033
STELLOX: 6020-9921V-SX
STELLOX: 6020-9921VK-SX
SWAG: 70 91 0617
TATSUMI: TCC1200
TEXTAR: 89012500
TEXTAR: 89012600
TEXTAR: 89012700
TEXTAR: 89012800
TEXTAR: 92068500
TEXTAR: 92068503
TOMEX Brakes: TX 70-42
TREVI AUTOMOTIVE: BD1106
TREVI AUTOMOTIVE: RA167
TRUSTING: DF498
TRW: DF2686
VAICO: V24-80001
VALEO: 186153
VALEO: 886153
VALEO: 673025
VILLAR: 628.0126
ZEKKERT: BS-5008
ZIMMERMANN: 230.2359.20
ZIMMERMANN: 230.2359.52
ZentParts: Z06273
