ATE 24.0313-0161.1 Brake Disc

EAN: 4006633289382
Ready for dispatch: 19 June, 2026
22.32 EUR
Inc. VAT 0%
Payments methods:

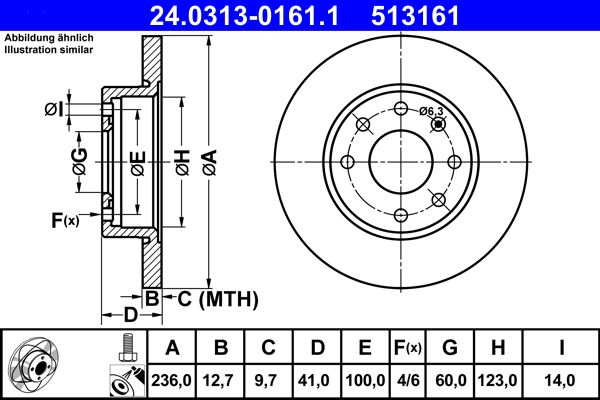

Technical Specifications
Outer Diameter [mm]: 236
Brake Disc Thickness [mm]: 12.7
Minimum thickness [mm]: 9.7
Brake Disc Type: solid
Number of Holes: 4
Surface: Coated
Bolt Hole Circle Ø [mm]: 100
Height [mm]: 41
Centering Diameter [mm]: 60
Inner Diameter [mm]: 123
Bore Ø [mm]: 14
Supplementary Article/Info 2: with bolts/screws
Test Mark: E1 90R-02C0859/1293
MAPP code available:
OEN Number
OPEL:
OPEL:
OPEL:
OPEL:
OPEL:
OPEL:
VAUXHALL:
VAUXHALL:
VAUXHALL:
VAUXHALL:
VAUXHALL:
VAUXHALL:
Similar Spare Parts
4X4 ESTANFI: EST-60-09-911C
A.B.S.: 15748
A.Z. Meisterteile: AZMT-44-024-1074
A.Z. Meisterteile: AZMT-44-024-1092
ABTEX: BD073S
ABTEX: BD898S
AIC: 51717
ALLIED NIPPON: AND6446
ANDEL: AND0584
ANDEL: AND0035
AP: 10170
AP: 14073
AP: 14073 V
AP: 14073 X
AP: X 10170
AP XENERGY: X601023
APlus: 61389AP
APlus: 61461AP
ASAM AUTOMOTIVE: 30663
ASHIKA: 60-09-911C
ASPART: 3BDI1136
AYD OE - Excellence: 10-50350
AYD OE - Excellence: 10-50278
BENDIX Braking: BDS1161
BLUE PRINT: ADZ94329
BORG & BECK: BBD4258
BORG & BECK: BBD4857
BOSCH: 0 986 478 079
BOSCH: 0 986 478 081
BOSCH: 0 986 479 B20
BOSCH: 0 986 479 S98
BRECO: BS 7275
BRECO: BS 7602
BRECO: BV 7602
BREMBO: 08.4475.10
BREMBO: 08.4475.75
BREMBO: 08.8638.10
BREMBO: 08.8638.11
BREMBO: 08.8638.1X
BREMSI: CD6116S
Brake ENGINEERING: DI844751
CASALS: 55440
CASALS: 55441
CHAMPION: 561158CH
CHAMPION: 562195CH
CIFAM: 800-080
CIFAM: 800-568C
COMLINE: ADC1101
CWORKS: C210R0003
DACO Germany: 602701
DACO Germany: 603610
DAVID VASCO: T1608
DELPHI: BG2148
DENCKERMANN: B130009
DON: PCD11202
Dr!ve+: DP1010.11.0015
EUROBRAKE: 5815203606
EUROBRAKE: 5815203641
EUROBRAKE: 5815209902
EUROBRAKE: 5815313606
EUROBRAKE: 5815313641
FEBI BILSTEIN: 08504
FENOX: TB215063
FERODO: DDF001
FERODO: DDF1129
FERODO: DDF1129C
FERODO: DDF116
FERODO: DDF116C
FI.BA: FBD301
FREMAX: BD-1240
FREMAX: BD-9020
GH: GH-403610
GH: GH-403634
GIRLING: 6016083
HELLA: 8DD 355 100-431
HELLA PAGID: 8DD 355 100-431
JAPANPARTS: DI-911C
JAPANPARTS: DI911JM
JAPKO: 60911C
JPN: 30H9099-JPN
JPN: 30H9114-JPN
JURATEK: VAU107
JURATEK: VAU108
JURID: 561158JC
JURID: 561158JC-1
KEY PARTS: KBD4258
KEY PARTS: KBD4857
KRAFT AUTOMOTIVE: 6041500
KRAFTVOLL GERMANY: 07040361
MAGNETI MARELLI: 353613405140
MAGNETI MARELLI: 360406037200
MAGNETI MARELLI: 360406037205
MAGNETI MARELLI: 360406039200
MAGNETI MARELLI: 360406039202
MAGNETI MARELLI: 360704021100
MAGNETI MARELLI: 361302040129
MAGNETI MARELLI: 361302040177
MASTER-SPORT GERMANY: 24011301611-SET-MS
MASTER-SPORT GERMANY: 24011301611-SET-MSP
MAXGEAR: 19-0744
MAXGEAR: 19-0744MAX
MAXGEAR: 19-0744SPORT
MAXTECH: 831212
MDR: MFD-2911
METELLI: 23-0080
METELLI: 23-0568C
METZGER: 6110014
METZGER: 6110450
MEYLE: 615 521 6003
MINTEX: MDC266
MINTEX: MDK0019
MINTEX: MDK0157
MOTAQUIP: LVBD1411Z
MTR: 12108574
NECTO: WN303
NK: 203606
NK: 203641
NK: 209902
NK: 313606
NK: 313641
OPTIMAL: BS-0590C
Omnicraft: 2134002
Omnicraft: 2134590
PAGID: 52404
PAGID: 52404NC
PEMEBLA: JAPDI-911C
PEMEBLA: BNXBDS1161
PILENGA: 5063
PILENGA: 5770
PROFIT: 5010-0116
ProfiPower: 3B1063
QUARO: QD7483
RAICAM: RD00569
RAP BRAKES: R-D0864
RED-LINE: 26OP003
RIDEX: 82B2460
ROTINGER: RT 1009
ROTINGER: RT 1009-GL
ROTINGER: RT 1009-GL T3
ROTINGER: RT 1009-GL T5
ROTINGER: RT 1009-GL T6
ROTINGER: RT 1009-GL T9
ROTINGER: RT 1485
ROTINGER: RT 1485-GL
ROTINGER: RT 1485-GL T3
ROTINGER: RT 1485-GL T5
ROTINGER: RT 1485-GL T6
ROTINGER: RT 1485-GL T9
SIGMAUTO: DBA116S
SKF: VKBD 80590 S2
SRLine: S71-0011
STARLINE: PB 1009C
STELLOX: 6020-3606-SX
STELLOX: 6020-3606K-SX
SWAG: 40 90 8504
TATSUMI: TCC1194
TEXTAR: 89000800
TEXTAR: 89001800
TEXTAR: 92020900
TEXTAR: 92020903
TOMEX Brakes: TX 70-28
TOPRAN: 200 935
TOPRAN: 206 122
TREVI AUTOMOTIVE: BD1011
TREVI AUTOMOTIVE: BD1045
TREVI AUTOMOTIVE: RA127
TRIALLI: DF 270118
TRUSTING: DF009
TRUSTING: DF949
TRW: DF1608
VAICO: V40-1681
VAICO: V40-40006
VALEO: 186187
VALEO: 186757
VALEO: 673033
VILLAR: 628.0484
VILLAR: 628.1044
ZEKKERT: BS-5033
ZEKKERT: BS-5355
ZIMMERMANN: 430.1452.20
ZIMMERMANN: 430.1452.52
ZentParts: Z06501
