In stock

ATE 24.0309-0114.1 Brake Disc

EAN: 4006633146340
Ready for dispatch: Tomorrow, 18 June, 2026
35.05 EUR
Inc. VAT 0%
Payments methods:

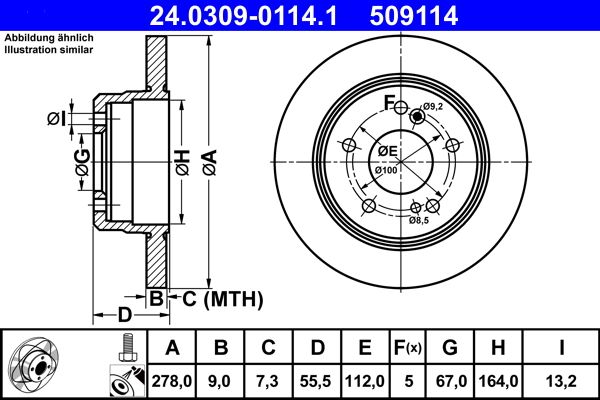

Technical Specifications
Outer Diameter [mm]: 278
Brake Disc Thickness [mm]: 9
Minimum thickness [mm]: 7.3
Brake Disc Type: solid
Number of Holes: 5
Surface: Coated
Bolt Hole Circle Ø [mm]: 112
Height [mm]: 55.5
Centering Diameter [mm]: 67
Inner Diameter [mm]: 164
Bore Ø [mm]: 13.2
Supplementary Article/Info 2: with bolts/screws
MAPP code available:
OEN Number
CHRYSLER:
CHRYSLER:
CHRYSLER:
CHRYSLER:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
MERCEDES-BENZ:
Similar Spare Parts
4U Autoparts: 52054MR
4X4 ESTANFI: EST-61-00-0505C
A.B.S.: 15815
A.Z. Meisterteile: AZMT-44-024-1503
A.Z. Meisterteile: AZMT-44-024-2172
ABTEX: BD960S
AIC: 51326
ALLIED NIPPON: AND6134
ALTE AUTOMOTIVE: 128123FCAL
ANDEL: AND0207
ANDEL: AND0378
AP: 14245
AP: 14845
AP: 14845 V
AP: 14845 X
AP: X 14845
AP XENERGY: X601050
ASAM AUTOMOTIVE: 74963
ASHIKA: 61-00-0505
ASHIKA: 61-00-0505C
ASHUKI by Palidium: P331-037
BENDIX Braking: BDS1124
BLUE PRINT: ADA104306
BLUE PRINT: ADU174319
BORG & BECK: BBD4094
BOSCH: 0 986 478 325
BRECO: BS 7389
BRECO: BS 7636
BRECO: BV 7636
BREMBO: 08.5178.10
BREMBO: 08.5178.30
BREMBO: 08.5178.31
BREMBO: 08.5178.3X
BREMBO: 08.5178.77
BREMSI: CD6819S
BSG: BSG 60-210-039
Brake ENGINEERING: DI952050
Brake ENGINEERING: DI955550
COMLINE: ADC1616
DACO Germany: 603345
DAVID VASCO: T2757
DELPHI: BG3326C
DENCKERMANN: B130355
DON: PCD10312
Dr!ve+: DP1010.11.0922
EUROBRAKE: 5815203326
EUROBRAKE: 5815313326
FEBI BILSTEIN: 04629
FEBI BILSTEIN: 170102
FENOX: TB215196
FI.BA: FBD119
FREMAX: BD-0412
FTE: 9072021
FTE: BS4673
GH: GH-423384
GIRLING: 6025634
GIRLING: 6027574
HELLA: 8DD 355 101-012
HELLA: 8DD 355 124-381
HELLA: 8DD 355 101-011
HELLA: 8DD 355 127-011
HELLA PAGID: 8DD 355 124-381
HELLA PAGID: 8DD 355 101-011
HELLA PAGID: 8DD 355 101-012
HELLA PAGID: 8DD 355 127-011
JAPANPARTS: DP-0505
JAPANPARTS: DP-0505C
JAPANPARTS: DP0505JM
JAPKO: 610505
JAPKO: 610505C
JPN: 40H9055-JPN
JURATEK: MER149
JURID: 561963JC
JURID: 561963JC-1
KEY PARTS: KBD4094
KRAFT AUTOMOTIVE: 6041160
KRAFTVOLL GERMANY: 07040958
MAGNETI MARELLI: 353612813540
MAGNETI MARELLI: 353612832540
MAGNETI MARELLI: 360406031500
MAGNETI MARELLI: 360406032100
MAGNETI MARELLI: 360406032101
MAGNETI MARELLI: 360406032102
MAGNETI MARELLI: 360704022100
MAGNETI MARELLI: 361302040229
MAGNETI MARELLI: 361302040650
MAPCO: 15741
MAPCO: 15741C
MAPCO: 45741
MAPCO: 47806/1
MAPCO: 47806HPS
MASTER-SPORT GERMANY: 200901140
MASTER-SPORT GERMANY: 24010901141-PCS-MS
MASTER-SPORT GERMANY: 24010901141-SET-MS
MASTER-SPORT GERMANY: 24010901141-SET-MSP
MASTER-SPORT GERMANY: 200901140P
MASTER-SPORT GERMANY: 24010901141-PCS-MSP
MATRIX PRO: MX02423319
MAXGEAR: 19-0726
MAXGEAR: 19-0726MAX
MAXGEAR: 19-0726SPORT
MAXTECH: 873527
METZGER: 6110039
MEYLE: 015 523 0021
MEYLE: 015 523 0021/PD
MINTEX: MDC855C
MINTEX: MDC80855C
MOTAQUIP: LVBD468Z
MTR: 12135414
NECTO: WN819
NK: 203326
NK: 313326
OPTIMAL: BS-2700
OPTIMAL: BS-2700C
Omnicraft: 2134652
PAGID: 52153
PAGID: 52153NC
PEMEBLA: JAPDP-0505
PEMEBLA: BNXBDS1124
PEMEBLA: JAPDP-0505C
PILENGA: 5189
PILENGA: 5196
PROFIT: 5010-0819
ProfiPower: 3B2196
QUARO: QD4658
RAP BRAKES: R-D0815
RAP BRAKES: R-D0736C
RAP BRAKES: R-D0736
ROTINGER: RT 1190
ROTINGER: RT 1190-GL
ROTINGER: RT 1190-GL T3
ROTINGER: RT 1190-GL T5
ROTINGER: RT 1190-GL T6
ROTINGER: RT 1190-GL T9
SB: BR31103
SIGMAUTO: DBA819S
SKANIMPORT: 630-1001
SKF: VKBD 90088 S2
STARLINE: PB 1190C
STELLOX: 6020-3326K-SX
SWAG: 10 90 4629
TATSUMI: TCC1253
TEXTAR: 92032700
TEXTAR: 92032703
TEXTAR: 92032705
TOMEX Brakes: TX 70-93
TOPRAN: 400 864
TREVI AUTOMOTIVE: BD1019
TREVI AUTOMOTIVE: RA109
TRUCKTEC AUTOMOTIVE: 02.35.034
TRW: DF2563
TRW: DF2757
VAICO: V30-40012
VAICO: V30-40013
VAICO: V30-90003
VALEO: 186470
VALEO: 297470
VILLAR: 628.1186
VILLAR: 628.1200
ZEKKERT: BS-5062
ZIMMERMANN: 400.1412.20
ZIMMERMANN: 400.1412.52

Do you have questions about this product: Brake Disc ATE 24.0309-0114.1?

We use cookies for two reasons: to give you the best experience on Spareza, and to make sure the Spareza ads you see on other sites are relevant.

The ATE Brake Disc (24.0309-0114.1) is available now at Spareza, with expert support for both OEM and aftermarket applications. If you're unsure whether this part fits your vehicle, our specialists can verify compatibility against your exact model — just share your VIN or registration and we'll confirm it before you order.

Want to be certain about the specs? We can cross-check the 24.0309-0114.1 against OE and aftermarket reference numbers and confirm the key parameters of this Brake Disc — dimensions, connection types and the technical details that matter for a correct replacement. We work only with verified brands and keep detailed databases, so you are not left guessing.

If the ATE Brake Disc is out of stock or you'd like options, we can suggest equivalent parts from trusted manufacturers, balancing price against quality. For workshops, service centres and distributors we also handle bulk and wholesale enquiries, with stock visibility across multiple warehouses and worldwide shipping.

Frequently Asked Questions

How do I know if the ATE Brake Disc fits my vehicle?
Share your VIN or registration and our team will check the 24.0309-0114.1 against your exact model, comparing OE and cross-reference numbers to confirm fitment before you buy.

Is the Brake Disc an OEM or aftermarket part?
The listing shows the brand and manufacturer number (24.0309-0114.1) so you see exactly what you are getting. We supply both genuine OEM and quality aftermarket parts and can suggest equivalents if you'd prefer an alternative.

What if the ATE Brake Disc is out of stock?
We can recommend equivalent parts from trusted manufacturers and give you delivery estimates for in-stock alternatives across our warehouses.

Do you offer wholesale or bulk pricing?
Yes. For workshops, service centres and distributors we offer bulk pricing, multi-warehouse stock and worldwide shipping. Send us the 24.0309-0114.1 and the quantity you need for a quote.

How long will delivery take?
Delivery depends on your region and current stock. Tell us your location and we'll confirm availability and an estimated dispatch time for the Brake Disc before you order.

How can I be sure the part is genuine?
We work only with verified suppliers and authorised brands. Every ATE part is sourced through trusted channels, and we can provide reference details on request.
