ATE 24.0222-8044.1 Brake Drum

EAN: 4006633502221

68.67 EUR

Inc. VAT 21%

Ready for dispatch: Tomorrow, 03 September, 2025

Payments methods:

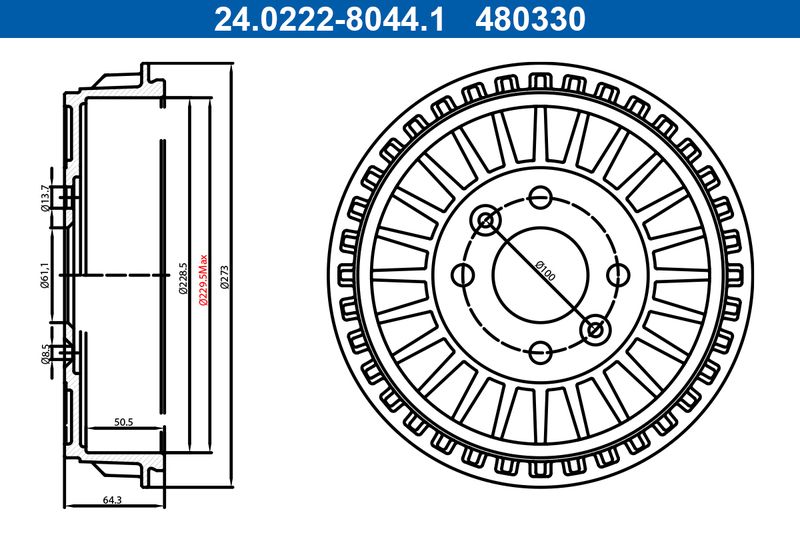

Technical Specifications

Inner brake drum diameter [mm]:	228.5
max. brake drum reboring dimension [mm]:	229.5
Inner brake drum height [mm]:	50.5
Number of Holes:	4
Bolt Hole Circle Ø [mm]:	100
Bore Diameter [mm]:	13.7
Total brake drum height [mm]:	64.3
Outer brake drum diameter [mm]:	273
Support plate diameter [mm]:	61.1
Test Mark:	E1 90R-02D0324/1878
MAPP code available:
