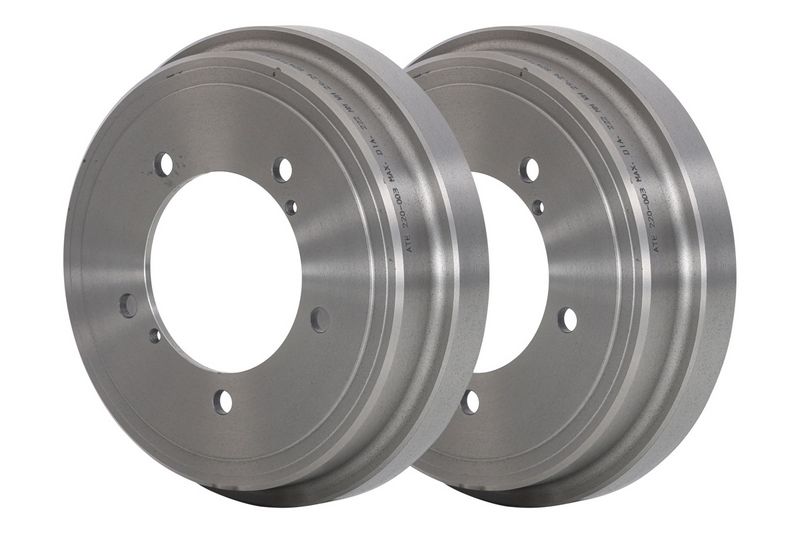

ATE 24.0222-0003.1 Brake Drum

Name: Brake Drum
Brand: ATE
Price: 45.75 EUR
Availability: InStock

EAN: 4006633470179

55.36 EUR

Inc. VAT 21%

Payments methods:

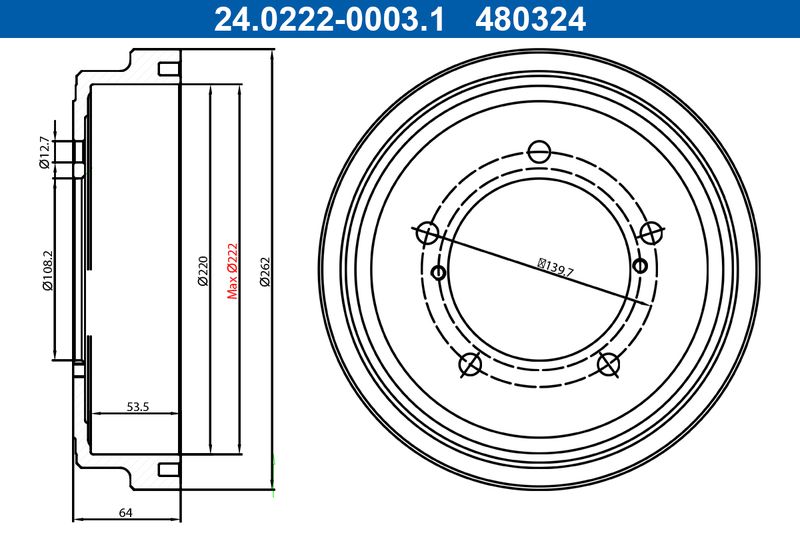

Technical Specifications

Inner brake drum diameter [mm]:	220
max. brake drum reboring dimension [mm]:	222
Inner brake drum height [mm]:	53.5
Number of Holes:	5
Bolt Hole Circle Ø [mm]:	139.7
Bore Diameter [mm]:	12.7
Total brake drum height [mm]:	64
Outer brake drum diameter [mm]:	262
Support plate diameter [mm]:	108.2
MAPP code available:

OEN Number

SUZUKI:	43511-65D10
SUZUKI:	43511-67D01
